Oil Pump Cover Disassembly Note

  1. Remove mounting bolts evenly in the pattern shown and remove the oil pump cover from the oil pump housing.

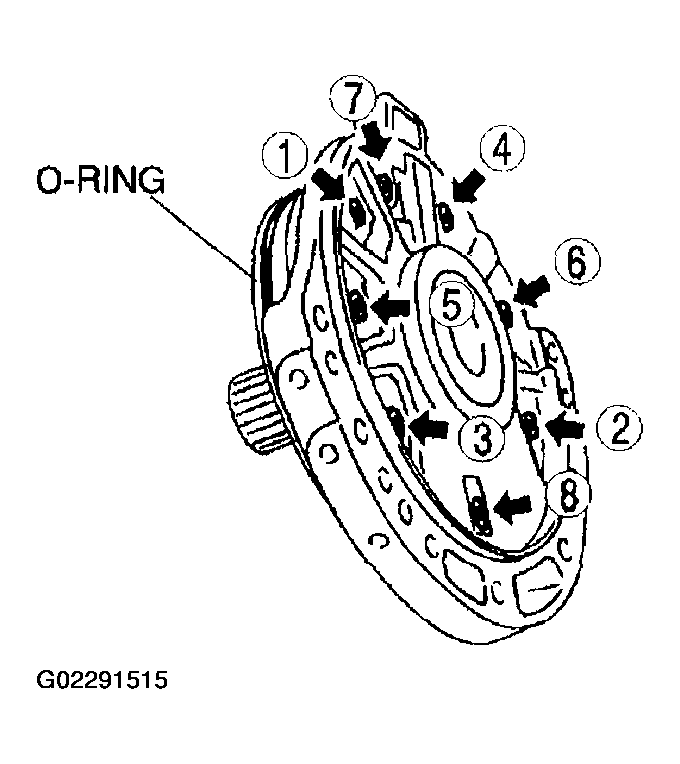

    Fig 1: Oil Pump Cover Bolt Removal Sequence
    G02291515Courtesy of MAZDA MOTORS CORP.
