Snap Ring Disassembly Note

    CAUTION: Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the retainer component edges.
  1. Install the SSTs  in the clutch drum as shown.
  2. Remove the snap ring.

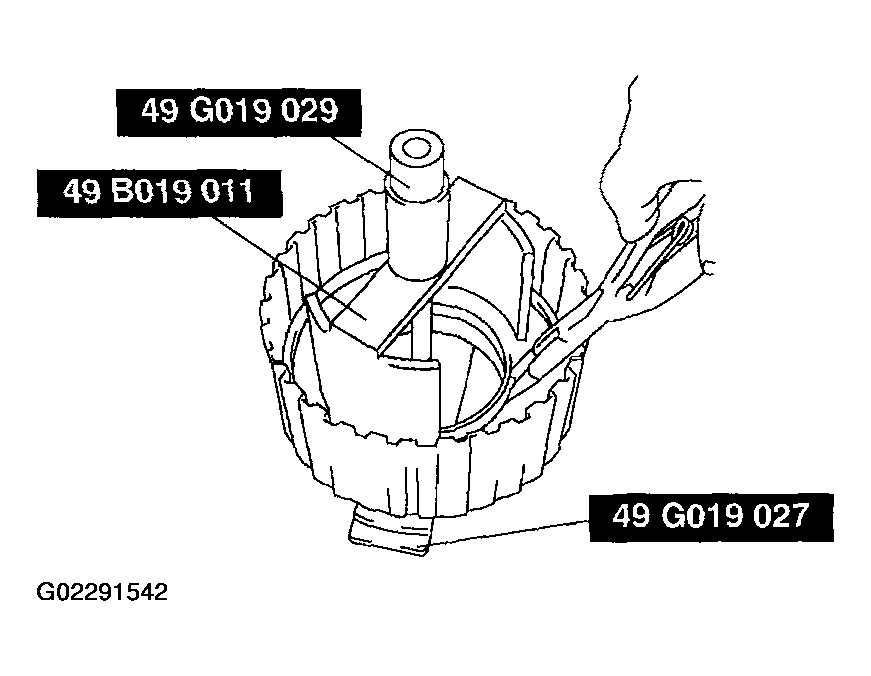

    Fig 1: Removing Snap Ring
    G02291542Courtesy of MAZDA MOTORS CORP.
  3. Remove the SSTs  .
  4. Remove the cancel force cover.
  5. Remove the O-ring from cancel force cover.
  6. Remove the return spring.
