Clutch Operation
- Set the direct clutch onto the transaxle case.

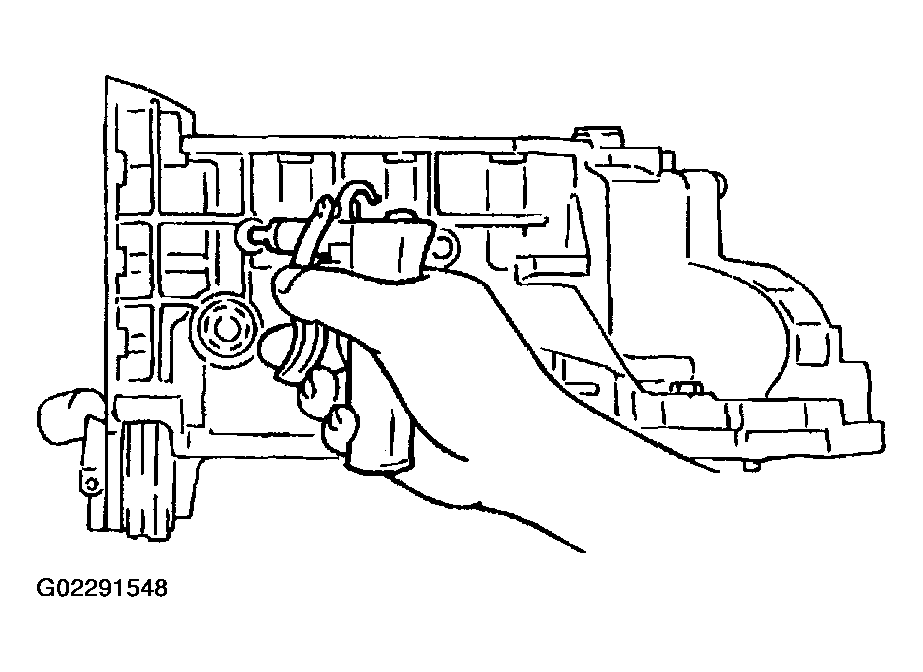

- Inspect the clutch operation by applying compressed air through the fluid passages shown.
- If not as specified, replace parts where necessary.
Air Pressure
390 kPa {4.0 kgf/cm 2 , 57 psi} max.
WARNING:
Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
CAUTION:
Applying compressed air to the assembled clutch pack for longer than 3 seconds at a time will damage the seal. Do not apply compressed air for more than the aforementioned time when testing the system.
