Rear Shock Absorber & Spring Removal/Installation: Notes

CAUTION:

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and if it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
• Be careful when using the jack to avoid damaging the brake pipe and hose.

1. Remove in the order indicated in the illustration. See Fig 1 .
2. Install in the reverse order of removal.
3. Bleed the air from the bake system. (Drum brake type). See the following:
   • For 2002-03 models, see BLEEDING BRAKE SYSTEM .
   • For 2004 models, see BLEEDING BRAKE SYSTEM

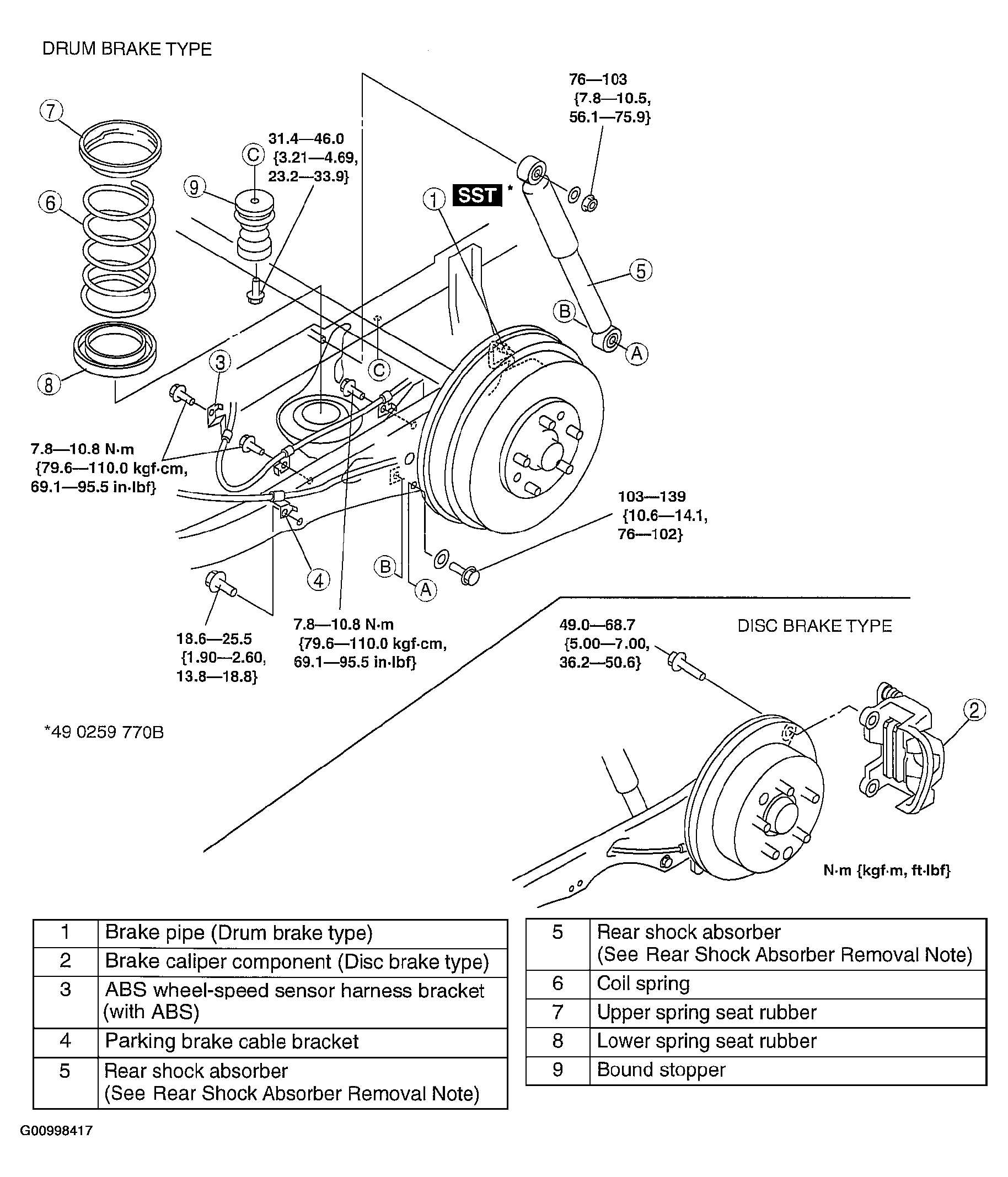

Fig 1: Removing/Installing Rear Shock Absorber & Spring

Courtesy of MAZDA MOTORS CORP.
