Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE: The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

1. Disassemble in the order indicated in the illustration.
2. Assemble in the reverse order of disassembly.

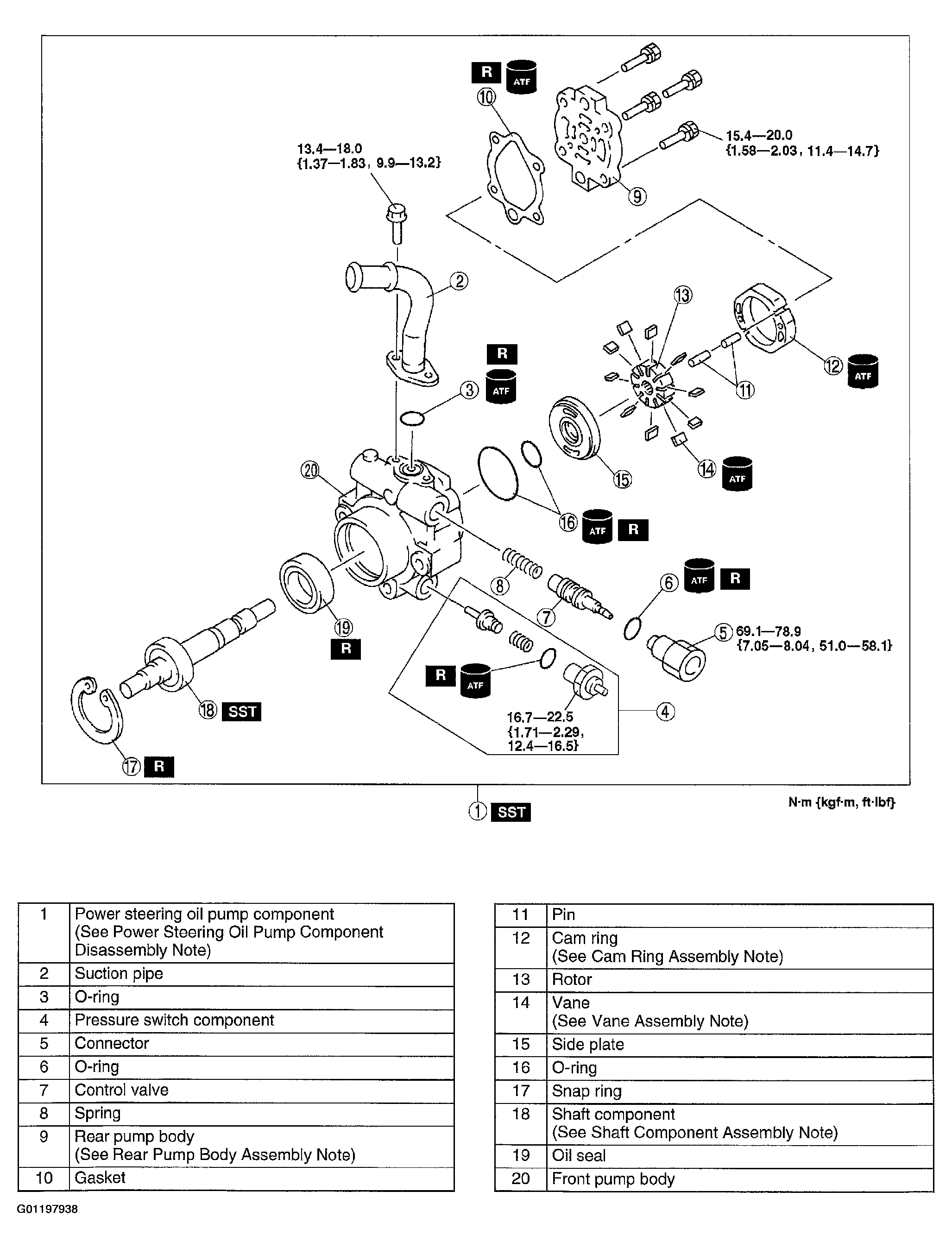

Fig 1: Disassembling/Assembling Power Steering Oil Pump

Courtesy of MAZDA MOTORS CORP.
