Front Wiper And Washer Switch Connector End View

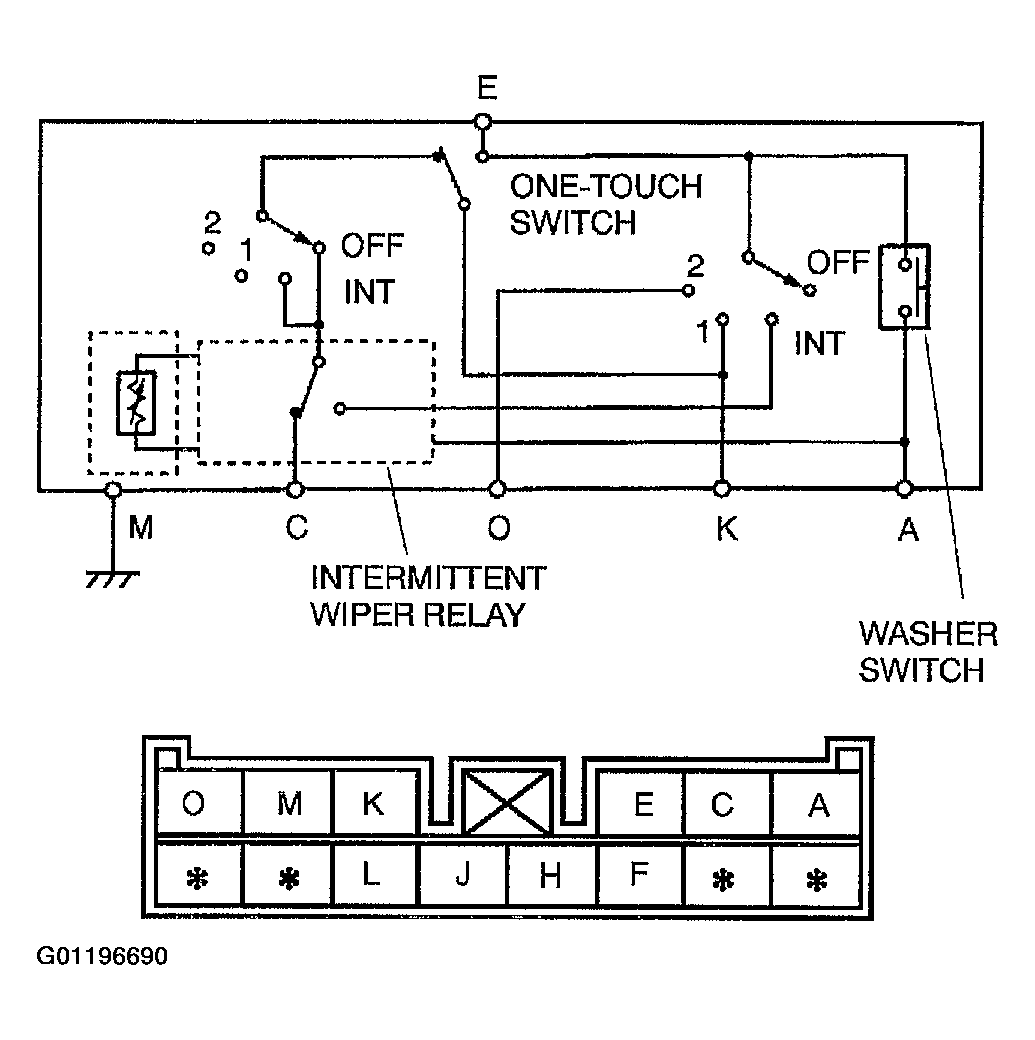

Fig 1: Front Wiper And Washer Switch Connector End View

G01196690

Courtesy of MAZDA MOTORS CORP.
