Door Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Lower or raise the front door glass so that the distance from the top of the front door glass at the molding is 225 mm {8.86 in} .
Disconnect the negative battery cable.
Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the table.

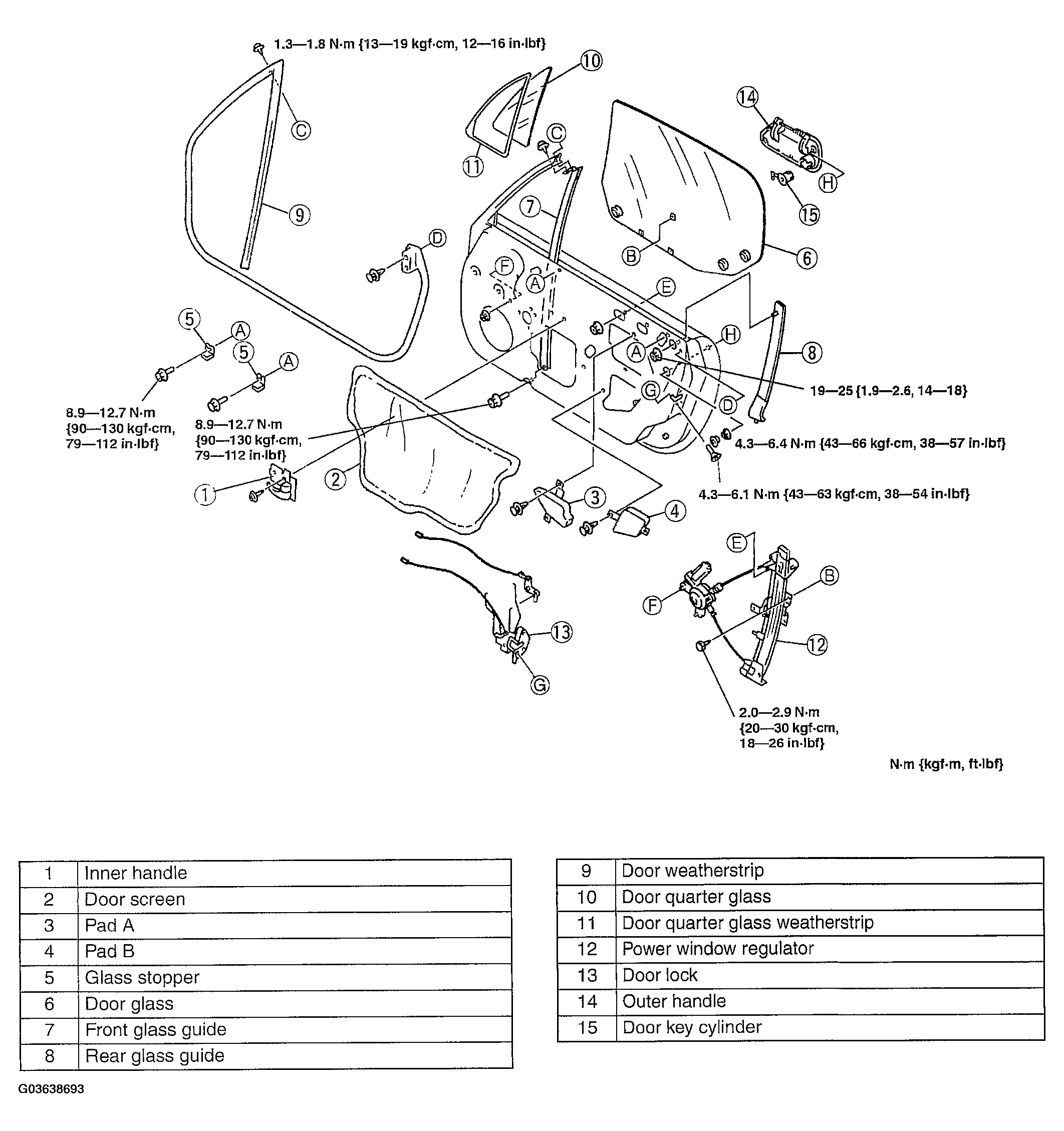

Fig 1: Disassembling Door - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
Adjust the door glass. (See DOOR GLASS ADJUSTMENT .)
