DRL System Wiring Diagram

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

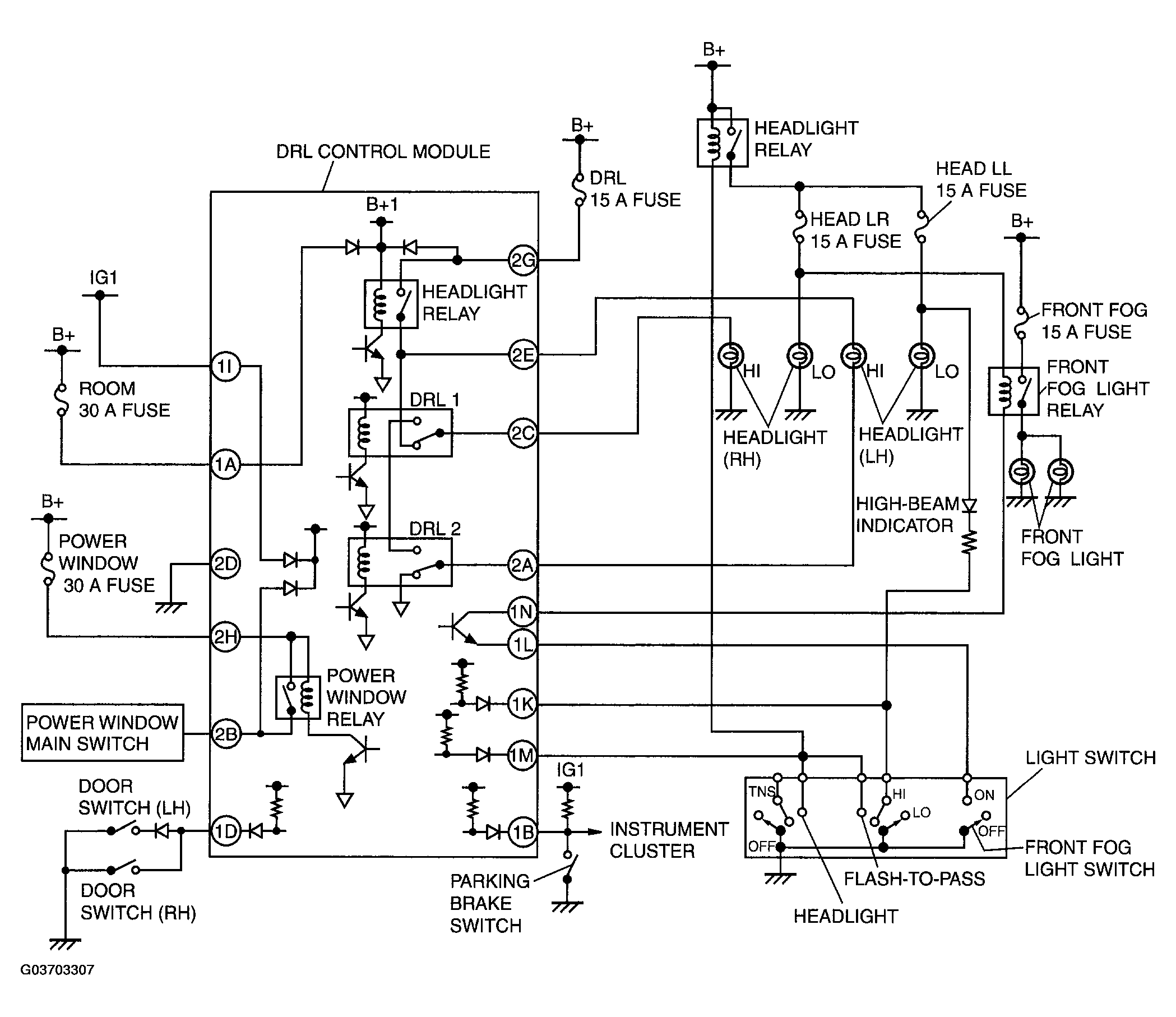

Fig 1: DRL System Wiring Diagram
G03703307Courtesy of MAZDA MOTORS CORP.
