Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .
    Fig 1: Removing Interior/Map Reading Lamp Lens
    G01904148Courtesy of MAZDA MOTORS CORP.
  2. Remove the interior/map reading lamp lens.

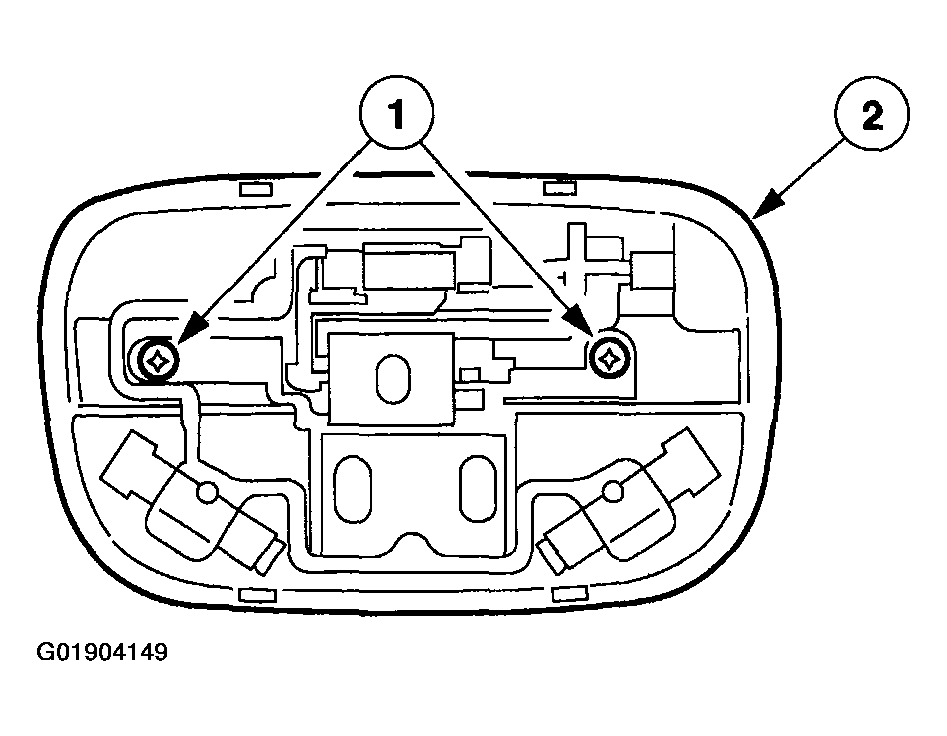

    Fig 2: Removing Interior/Map Reading Lamp Assembly
    G01904149Courtesy of MAZDA MOTORS CORP.
  3. Remove the interior/map reading lamp assembly.
    1. Remove the screws.
    2. Remove the interior/map reading lamp.
      1. Disconnect the electrical connector.
  4. To install, reverse the removal procedure.
