Removal and Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH front drive halfshaft. Refer to HALFSHAFT - FRONT .

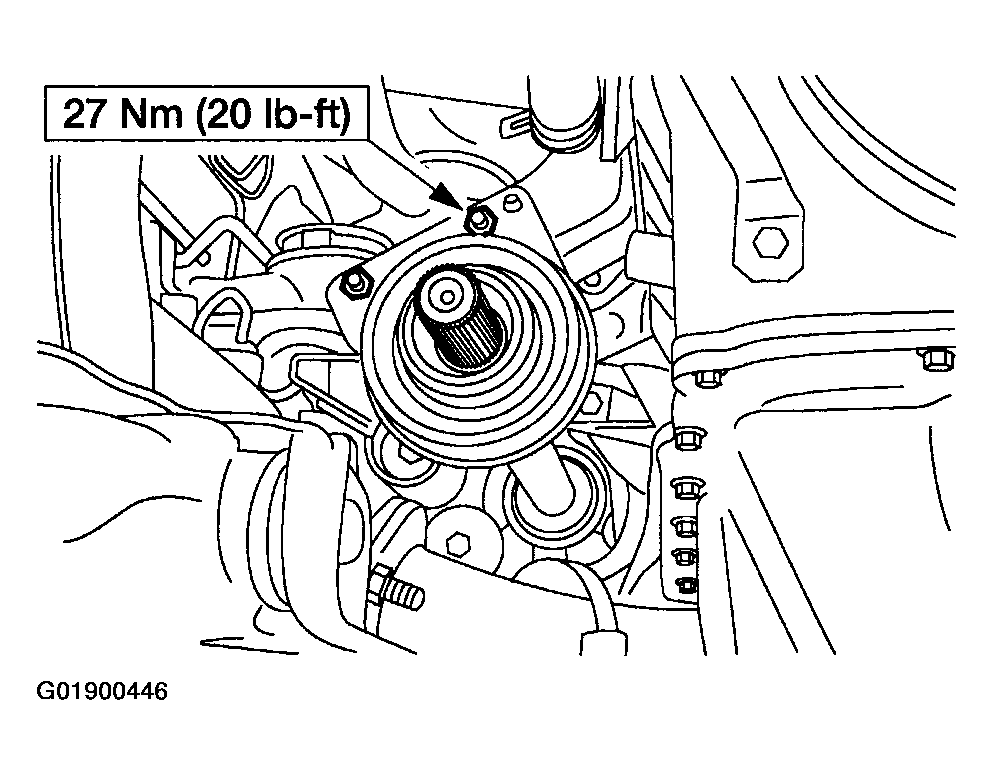

Fig 1: Removing Two Inner Halfshaft Bearing Retainer Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the two inner halfshaft bearing retainer nuts.

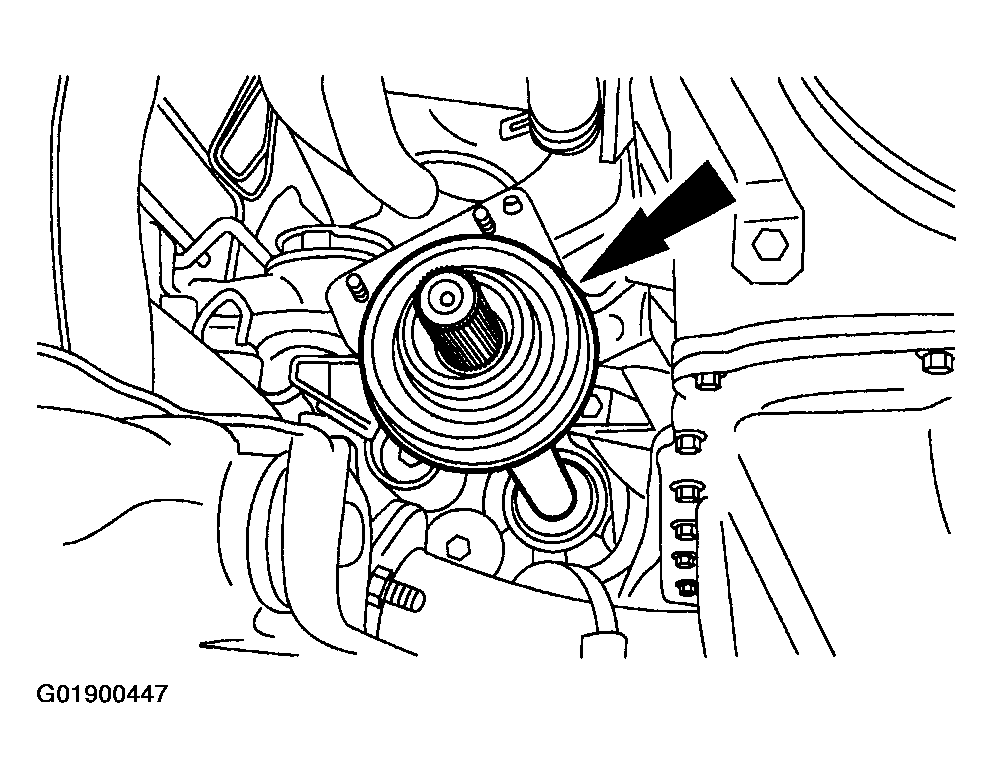

Fig 2: Removing Inner Halfshaft
Courtesy of MAZDA MOTORS CORP.
Remove the inner halfshaft.
To install, reverse the removal procedure.
