HALFSHAFT - Rear: Removal

WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear coil spring. .

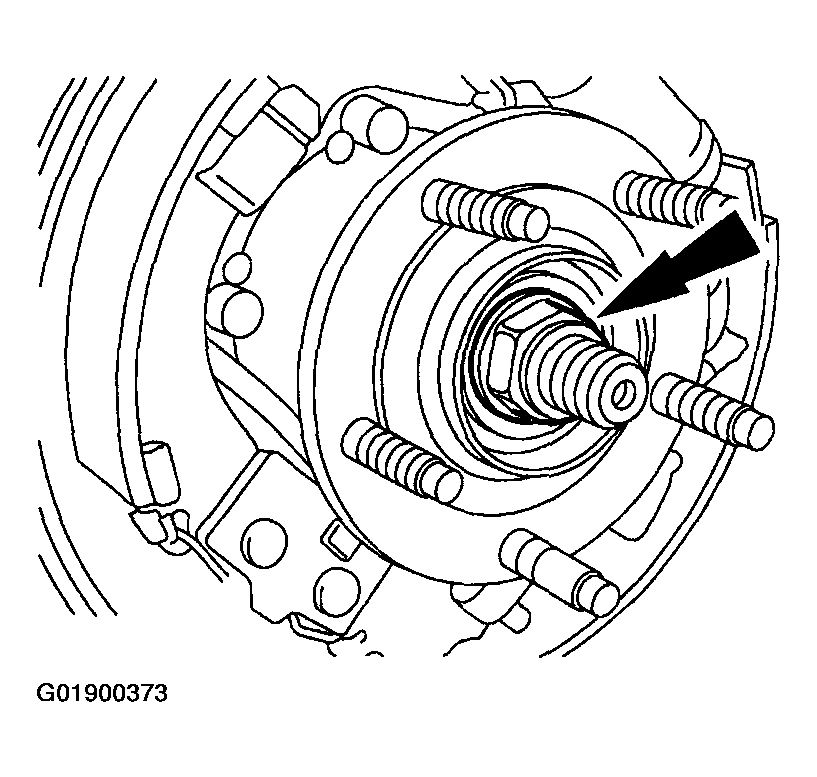

Fig 1: Removing And Discard Nut

Courtesy of MAZDA MOTORS CORP.

Remove and discard the nut.

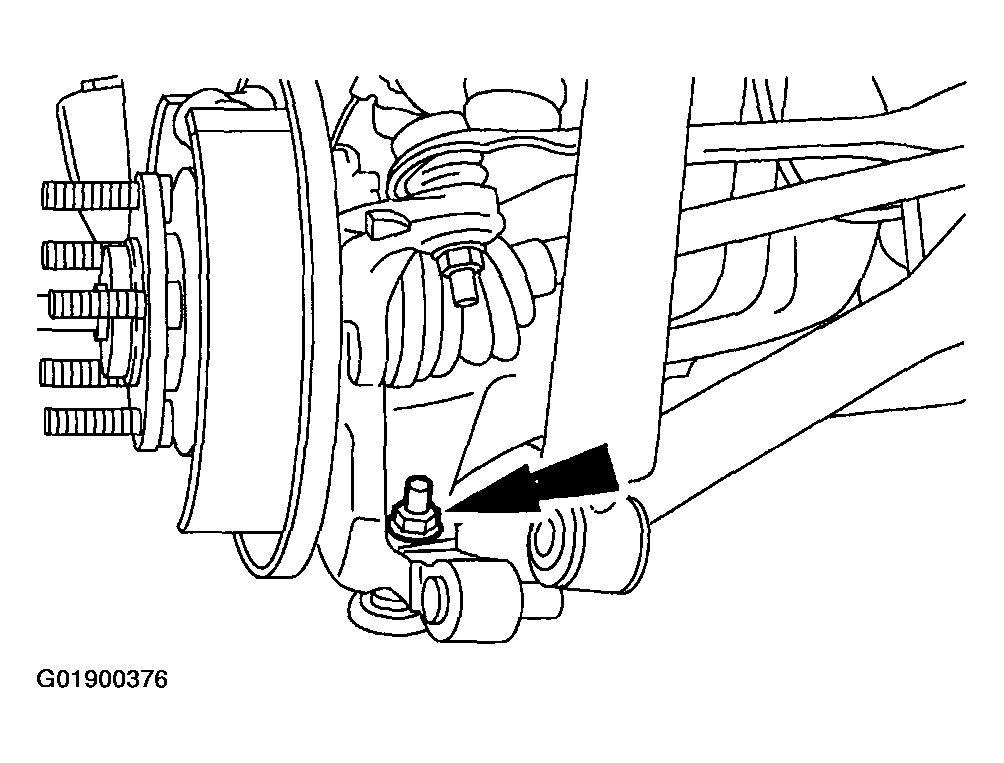

Fig 2: Removing Nut And Removing Lower Ball Joints
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Make sure to support the wheel knuckle.
Remove the nut and separate the lower ball joints.

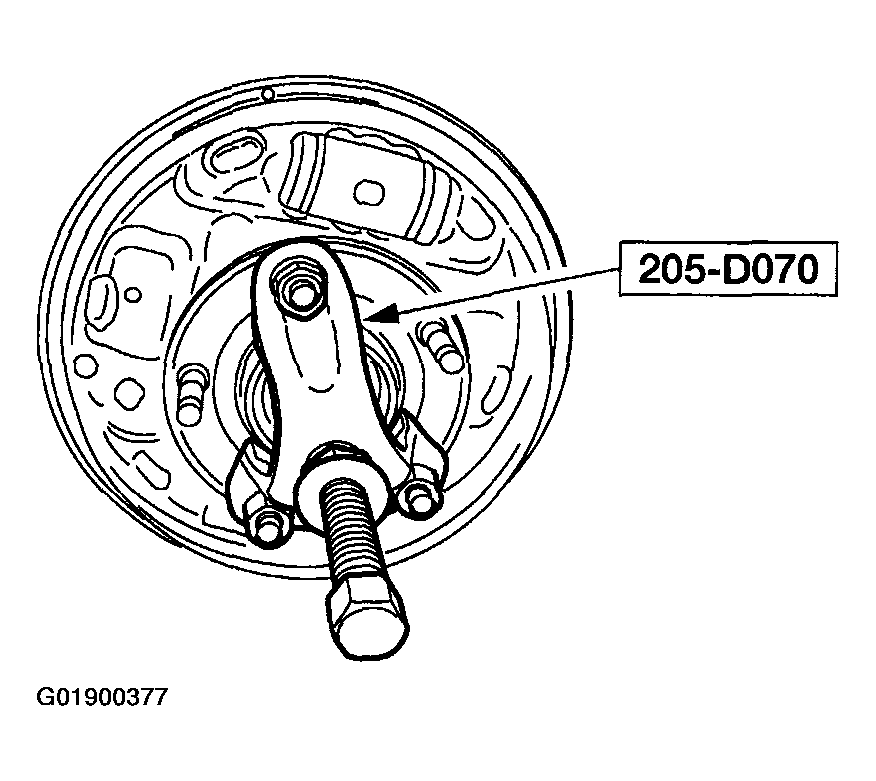

Fig 3: Separate Halfshaft From Knuckle Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, separate the halfshaft from the knuckle.

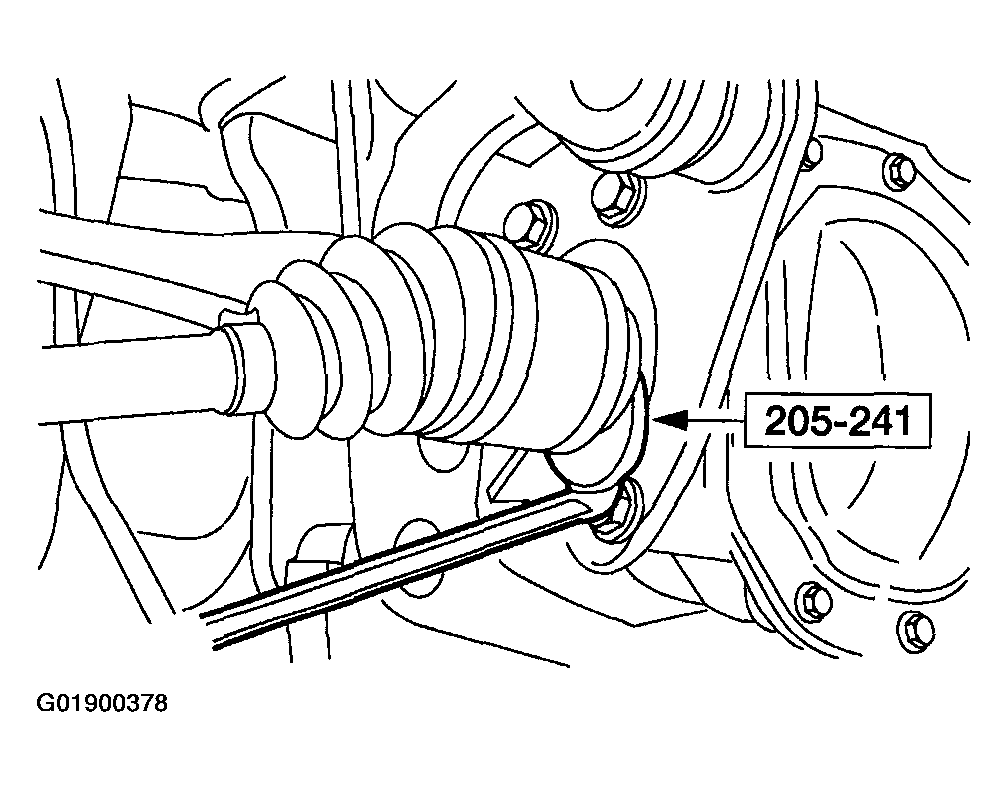

Fig 4: Remove Halfshaft Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, remove the halfshaft.
