Bearing Cap Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the bearing cap and differential carrier for proper installation.

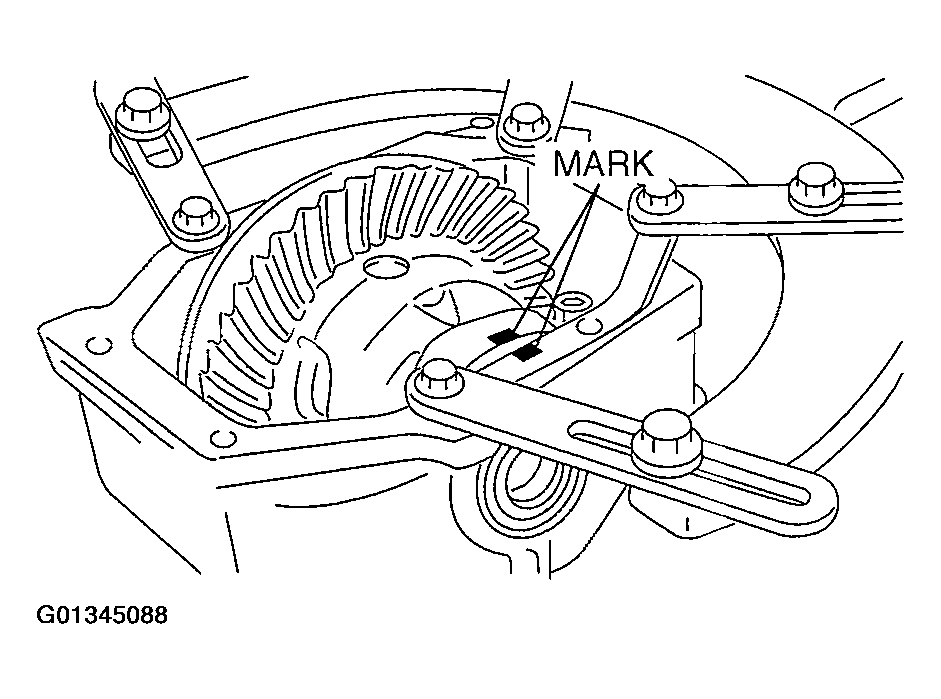

Fig 1: Locating Mark For Proper Installation
G01345088Courtesy of MAZDA MOTORS CORP.
