Timing Chain Component (LH) Installation Note

  1. Verify that the crankshaft keyway is at 11 o'clock position.

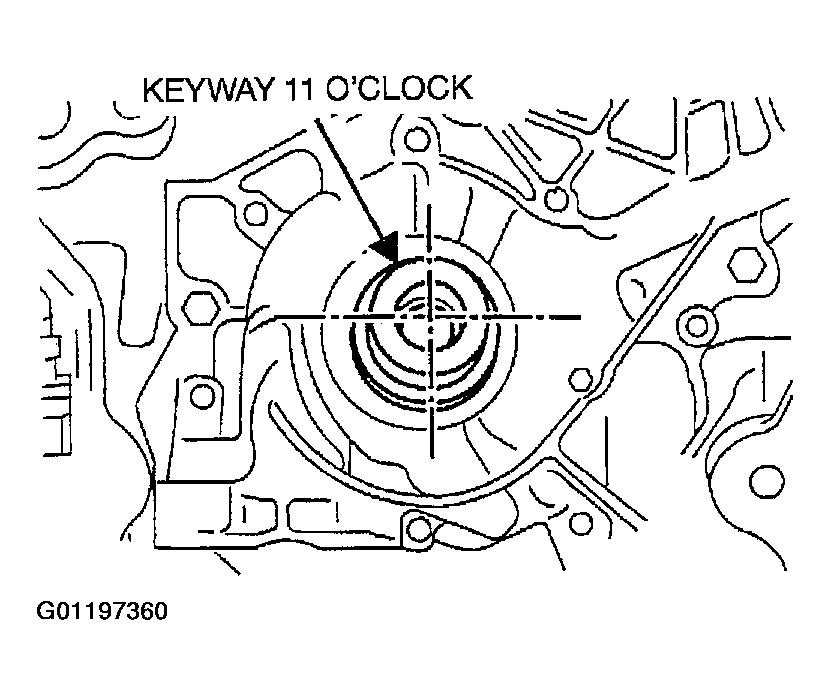

    Fig 1: Crankshaft Keyway In 11 O'Clock Position
    G01197360Courtesy of MAZDA MOTORS CORP.
  2. Position the mark on the intake camshaft to 9 o'clock position.
    3. NOTE:
    • Install the timing chain by aligning the colored links on the timing chain with the marks on the timing sprockets.

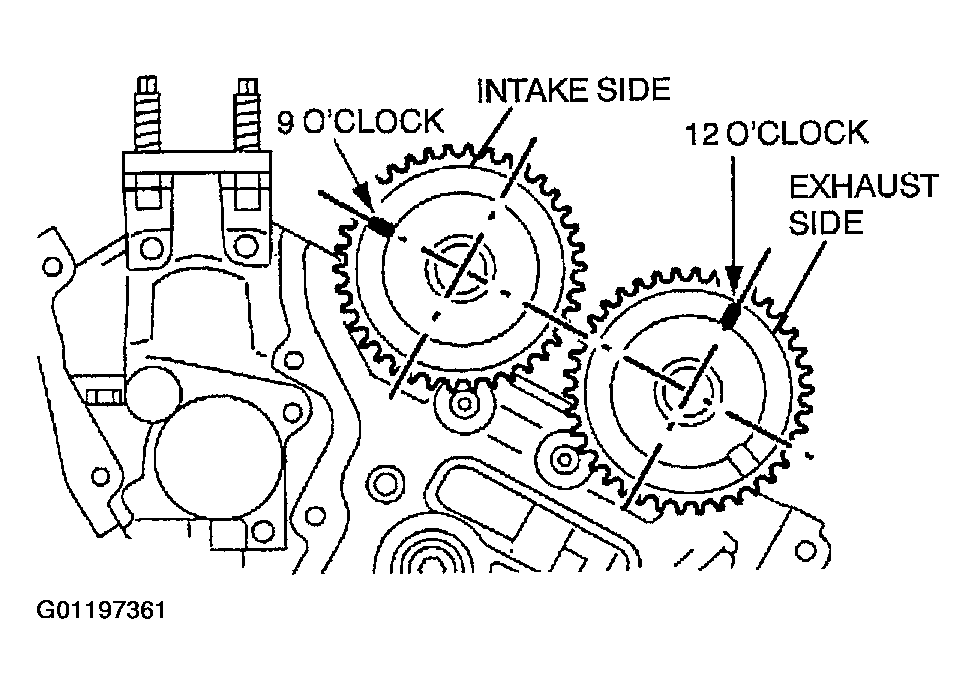

    Fig 2: Aligning Timing Marks
    G01197361Courtesy of MAZDA MOTORS CORP.
  3. Position the mark on the exhaust camshaft to 12 o'clock position.
  4. Install the timing chain (LH) in the following order.
    1. Timing chain crankshaft sprocket.
    2. Chain guide.
    3. Timing chain.
    4. Tensioner arm.
      CAUTION:
      • Install the camshaft journal thrust caps last, or damage to the thrust caps may occur.

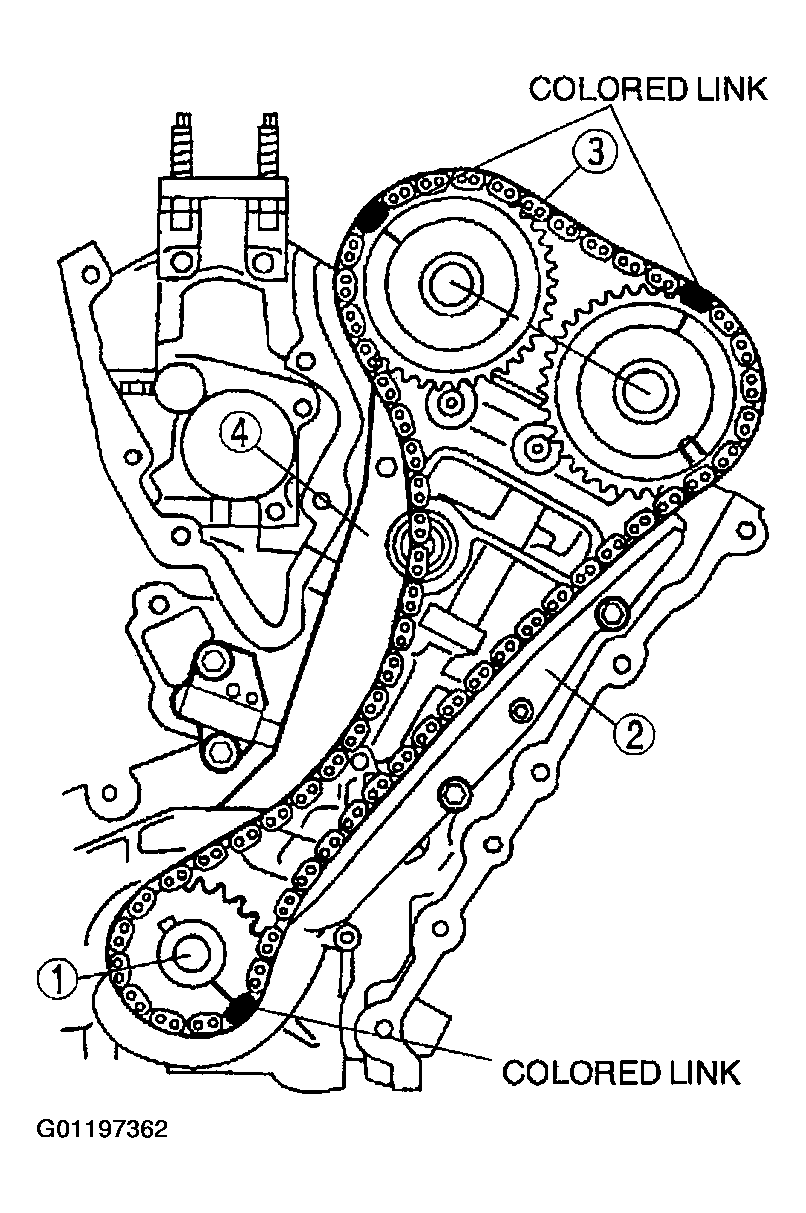

    Fig 3: Installing Timing Chain
    G01197362Courtesy of MAZDA MOTORS CORP.
    5. NOTE:
    • After adjusting the camshaft end play using the thrust caps 1L and 5L, tighten the other bearing caps.

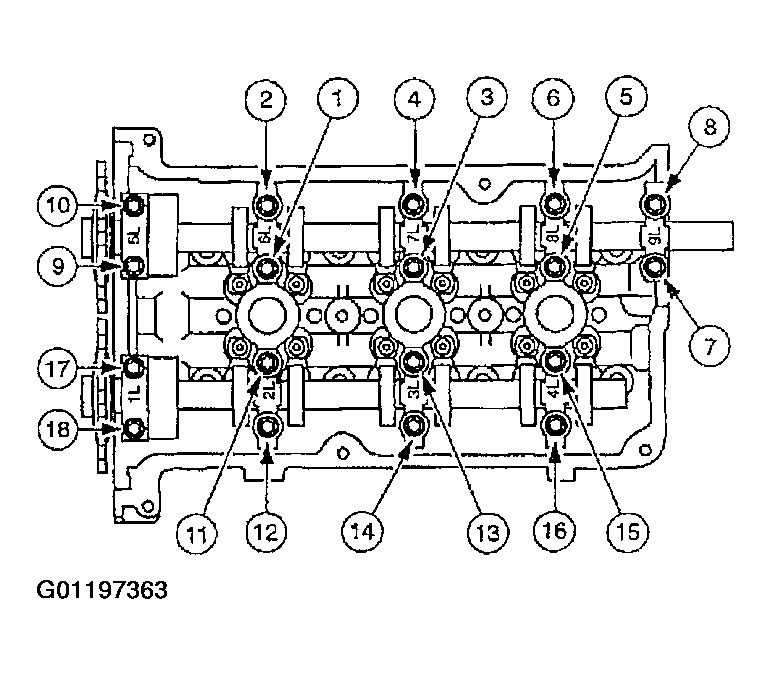

    Fig 4: Camshaft Cap Bolt Tightening Sequence
    G01197363Courtesy of MAZDA MOTORS CORP.
  5. Tighten the bearing caps evenly in the order shown in several passes.
