Engine Front Cover Removal Note

  1. Remove the engine front cover bolts and studs in the order shown.

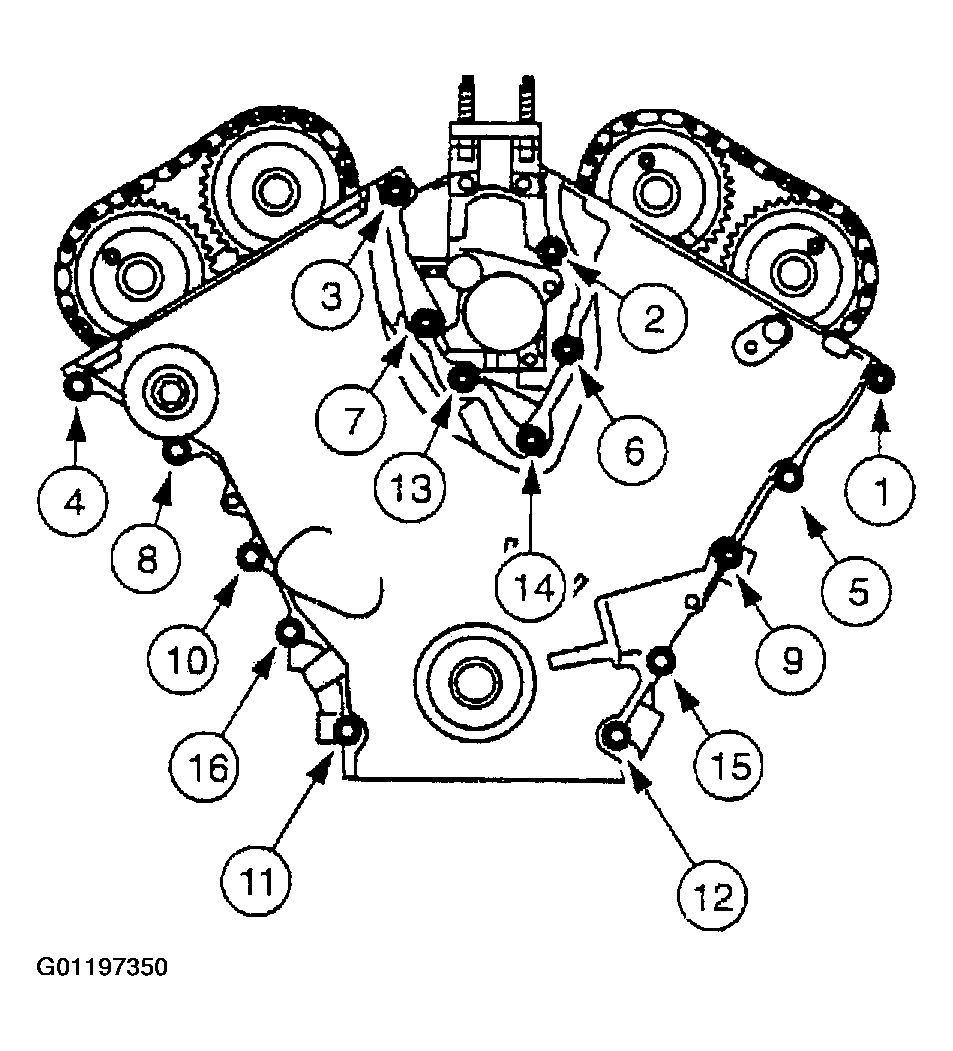

    Fig 1: Engine Front Cover Bolt Removal Sequence
    G01197350Courtesy of MAZDA MOTORS CORP.
