Engine Front Cover Installation Note

  1. Apply a 6 mm {0.24 in}  dot of silicone sealant at the indicated location.

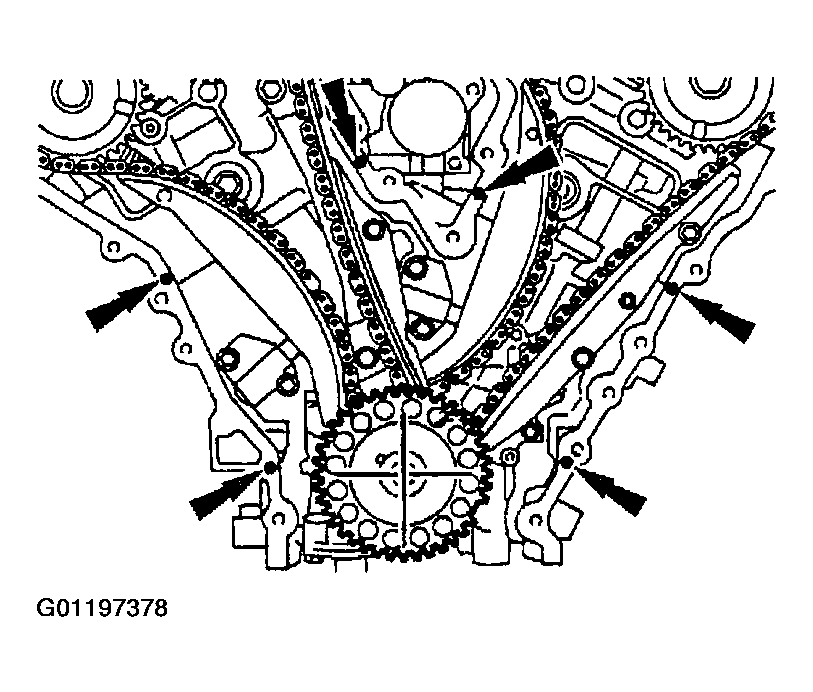

    Fig 1: Applying Silicone Sealant For Engine Front Cover Installation
    G01197378Courtesy of MAZDA MOTORS CORP.
  2. Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

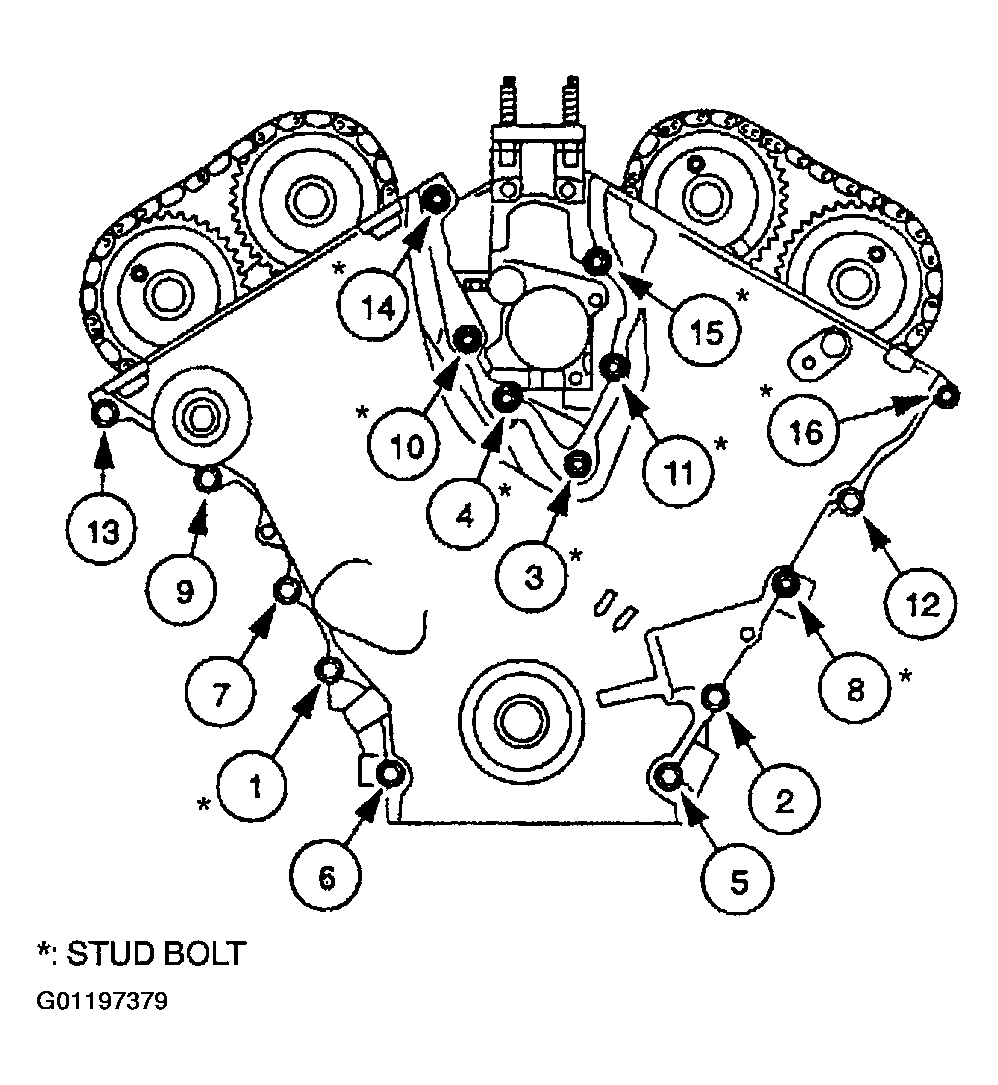

    Fig 2: Engine Front Cover Bolt Tightening Sequence
    G01197379Courtesy of MAZDA MOTORS CORP.
