Oil Pump Removal Note

  1. Loosen the oil pump bolts in the order shown.

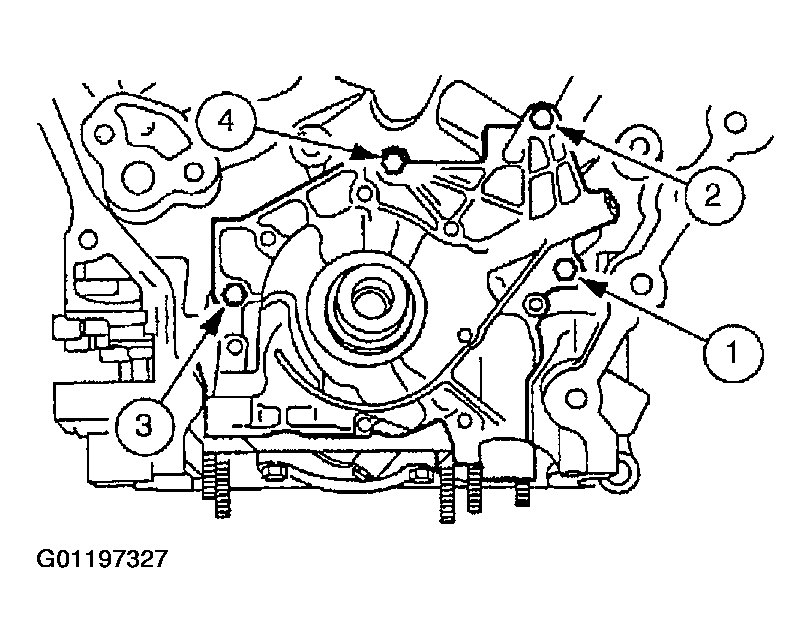

    Fig 1: Oil Pump Bolt Loosening Sequence
    G01197327Courtesy of MAZDA MOTORS CORP.
