Exhaust Manifold (RH) Installation Note
Exhaust Manifold (RH) Installation Note
Tighten the exhaust manifold installation nuts in the order shown.

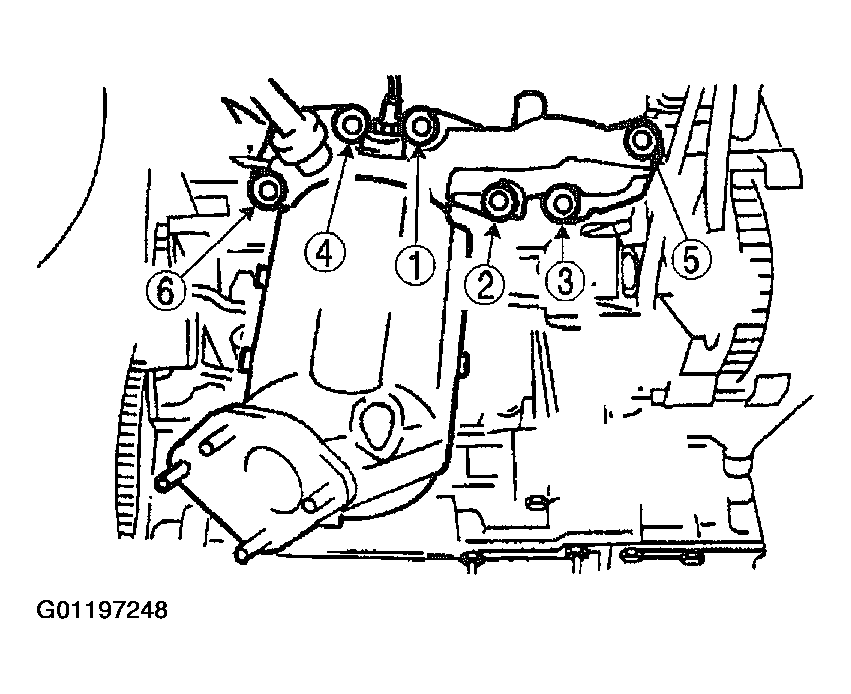

Fig 1: Exhaust Manifold Nut Tightening Sequence (RH)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
