Intermediate Shaft: Disassembly

Disassemble in the order indicated in the illustration. See Fig 1 .

Intermediate Shaft Disassembly Note  - Disassemble the intermediate shaft using the V-Block and Dust Seal assembly, as shown in the illustration. See Fig 2 .

Bearing Disassembly Note  - Remove the bearing using the Handle (49-G030-797), Bearing Installer (44-H025-001), and Support Block (49-G026-103), as shown in the illustration. See Fig 3 .

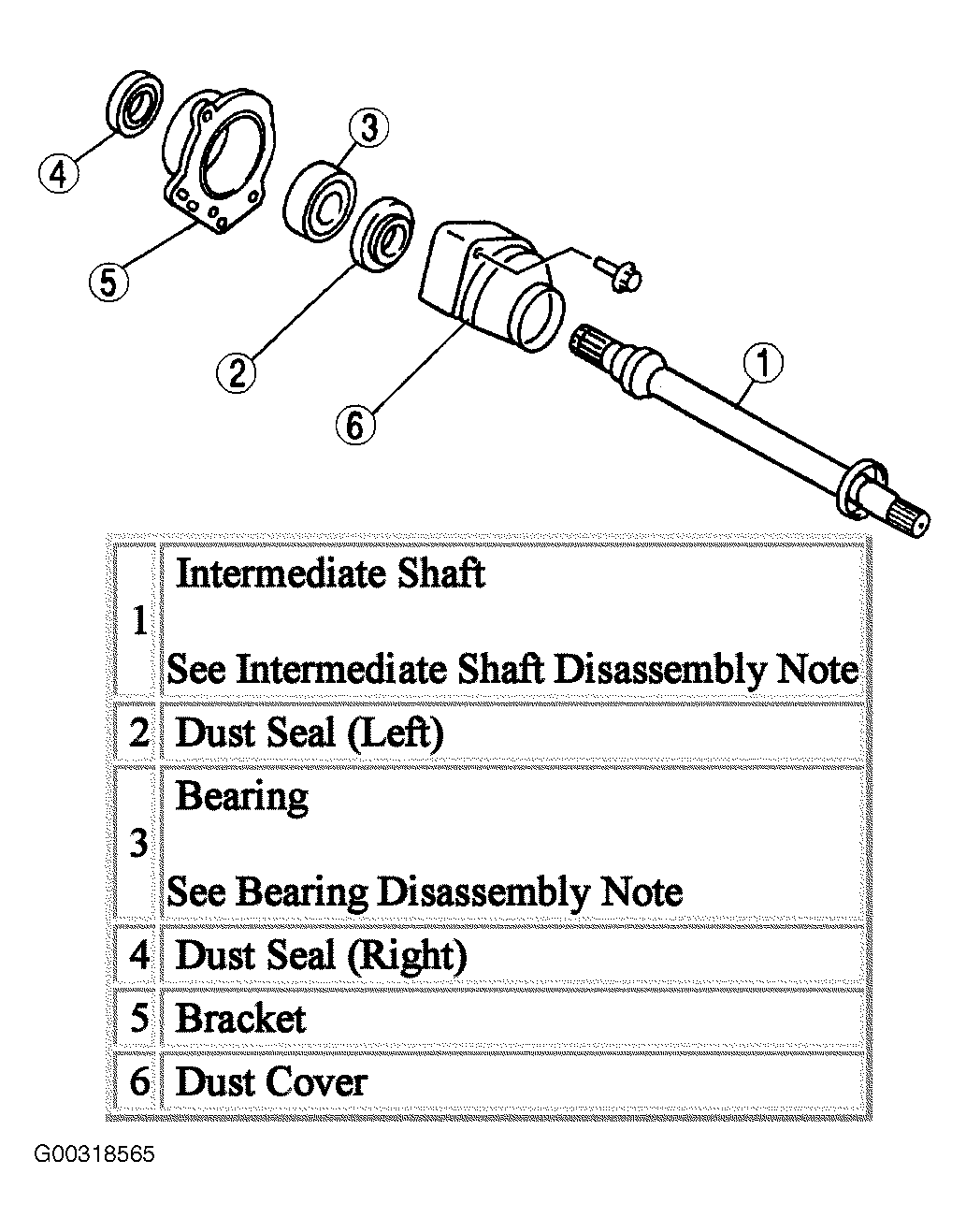

Fig 1: Exploded View Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembling Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

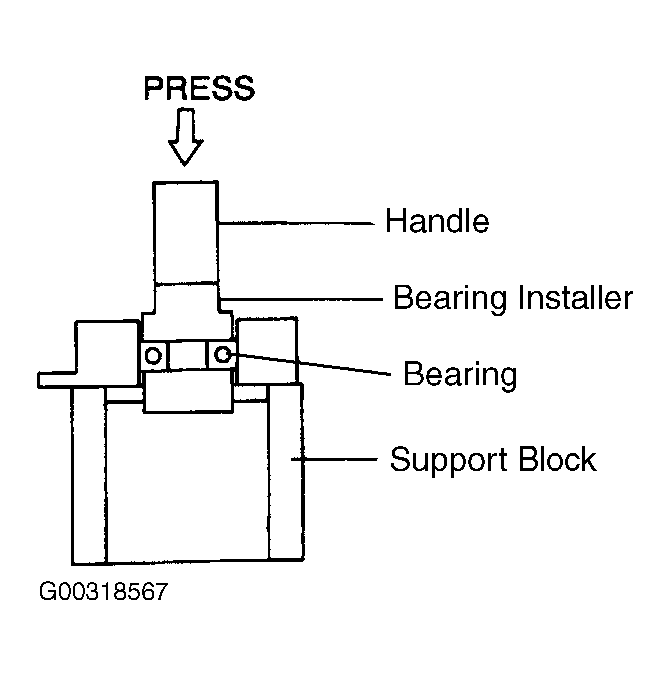

Fig 3: Removing Bearing

Courtesy of MAZDA MOTORS CORP.
