Vehicle Speed Output

NOTE: As vehicle speed increases, period of wave will shortens.

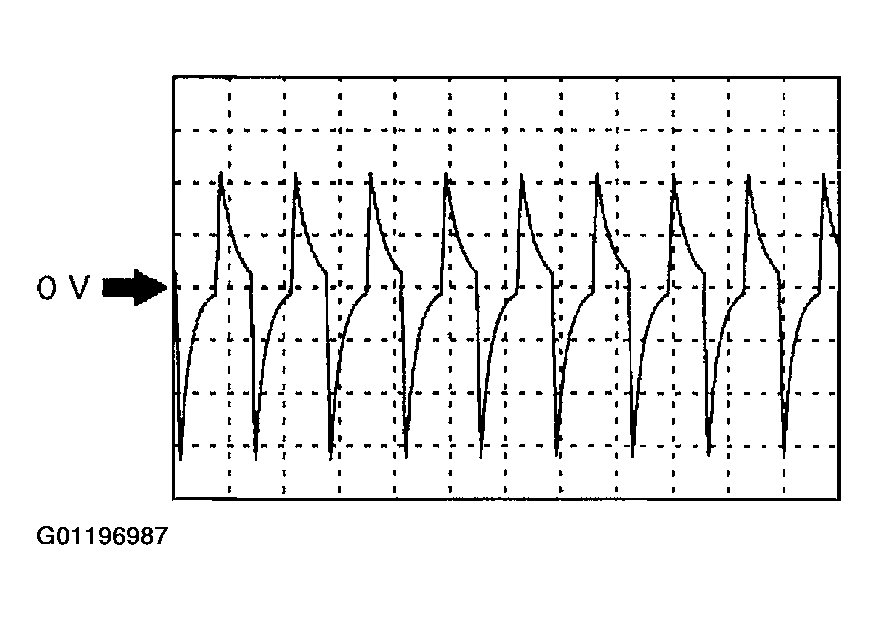

Fig 1: Vehicle Speed Output Wave Pattern
G01196987Courtesy of MAZDA MOTORS CORP.
