Torque Down Request

ABS HU/CM terminal: R (+) - AA (-).
Oscilloscope setting: 1 V/DIV (Y), 5 ms/DIV (X).
Vehicle condition: Idle after warm-up (Engine speed at approximately 650 RPM).

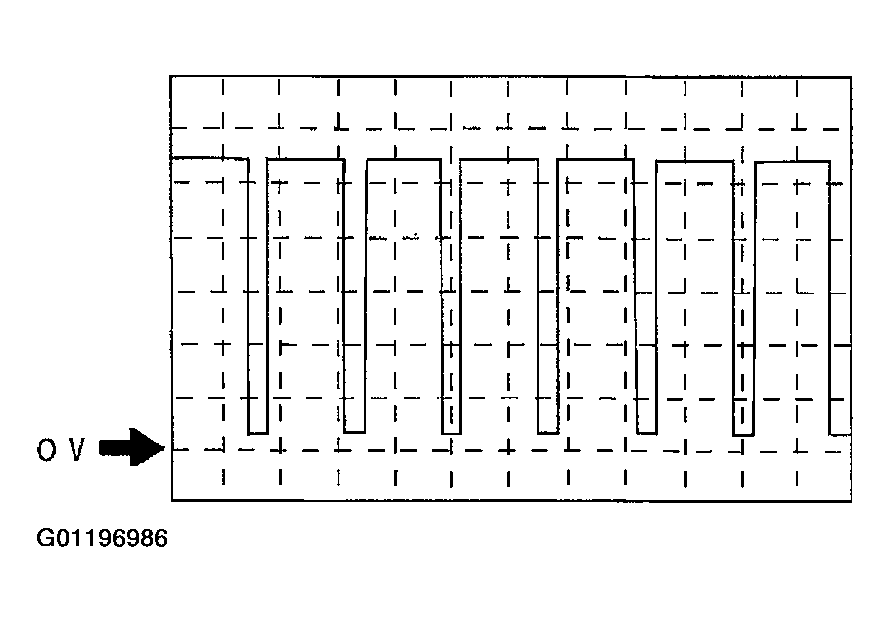

Fig 1: Torque Down Request Wave Pattern

G01196986

Courtesy of MAZDA MOTORS CORP.
