Headliner Removal/Installation

  1. Disconnect the negative battery cable.
  2. Turn the seaming welt and weatherstrip over.
  3. Remove the A-pillar trims. See A-PILLAR TRIM REMOVAL/INSTALLATION .
  4. Remove the B-pillar upper trims. See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .
  5. Remove the C-pillar trims. See C-PILLAR TRIM REMOVAL/INSTALLATION .
  6. Remove the D-pillar trims. See D-PILLAR TRIM REMOVAL/INSTALLATION .
  7. Remove the map light. See MAP LIGHT REMOVAL/INSTALLATION .
  8. Remove the interior light. See INTERIOR LIGHT REMOVAL/INSTALLATION .
  9. Remove the screws, then remove the sunvisor and assist handle.
  10. Fold hooks A up if equipped with a sliding sunroof.
  11. Remove the fasteners.

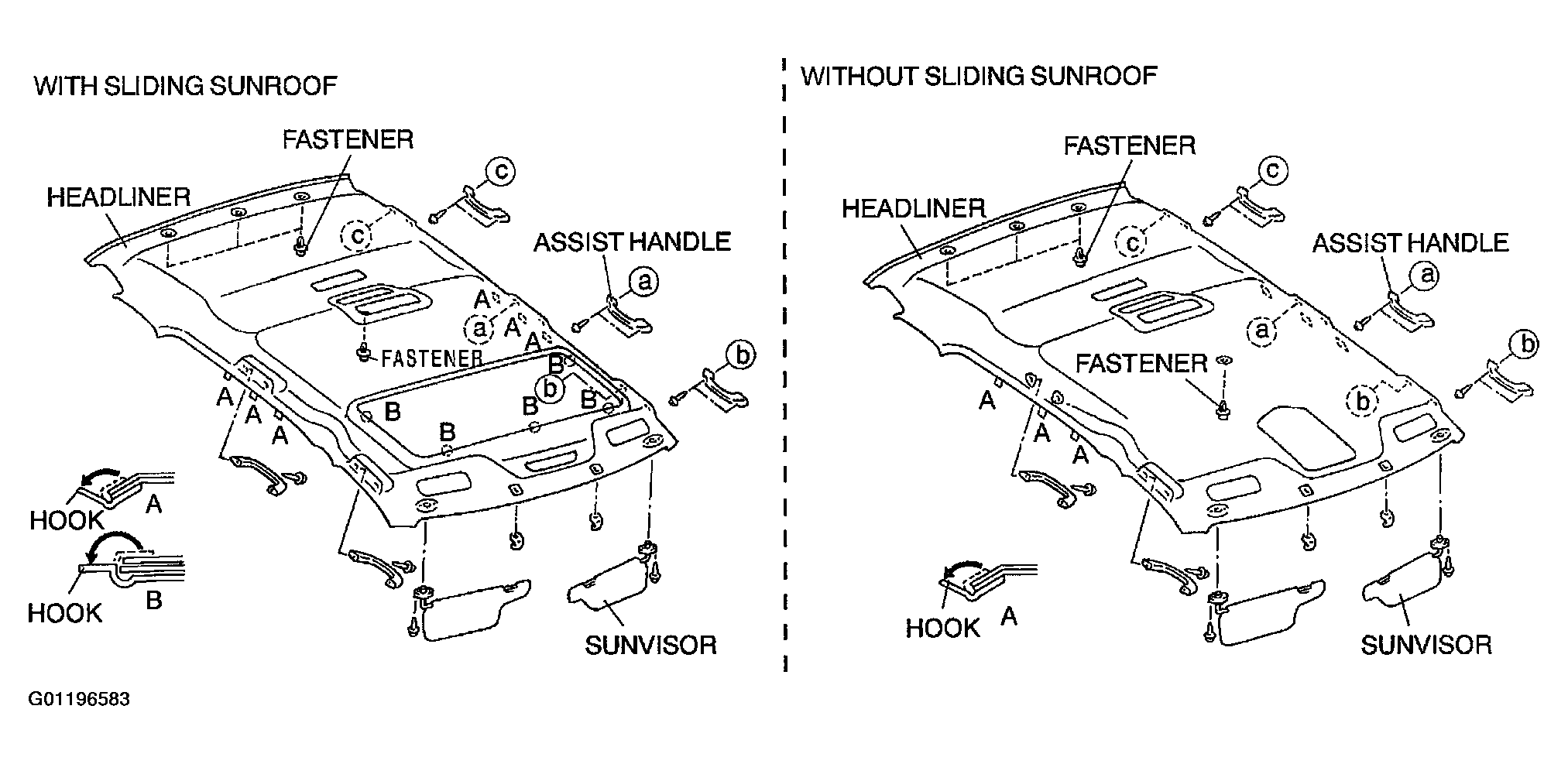

    Fig 1: Removing Headliner
    G01196583Courtesy of MAZDA MOTORS CORP.
  12. Remove the headliner from the vehicle through the liftgate opening.
  13. Install in the reverse order of removal.
