Outer Handle Assembly Note
Outer Handle Assembly Note
Connect the door key cylinder harness of outer handle as shown.

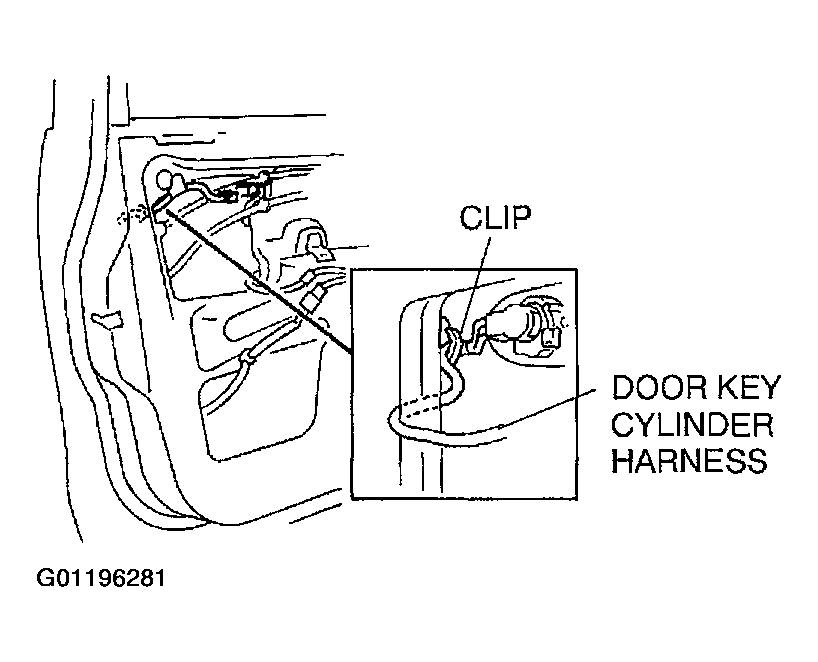

Fig 1: Connecting Door Key Cylinder Harness
Courtesy of MAZDA MOTORS CORP.
