Panel Light Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the driver-side side panel.
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

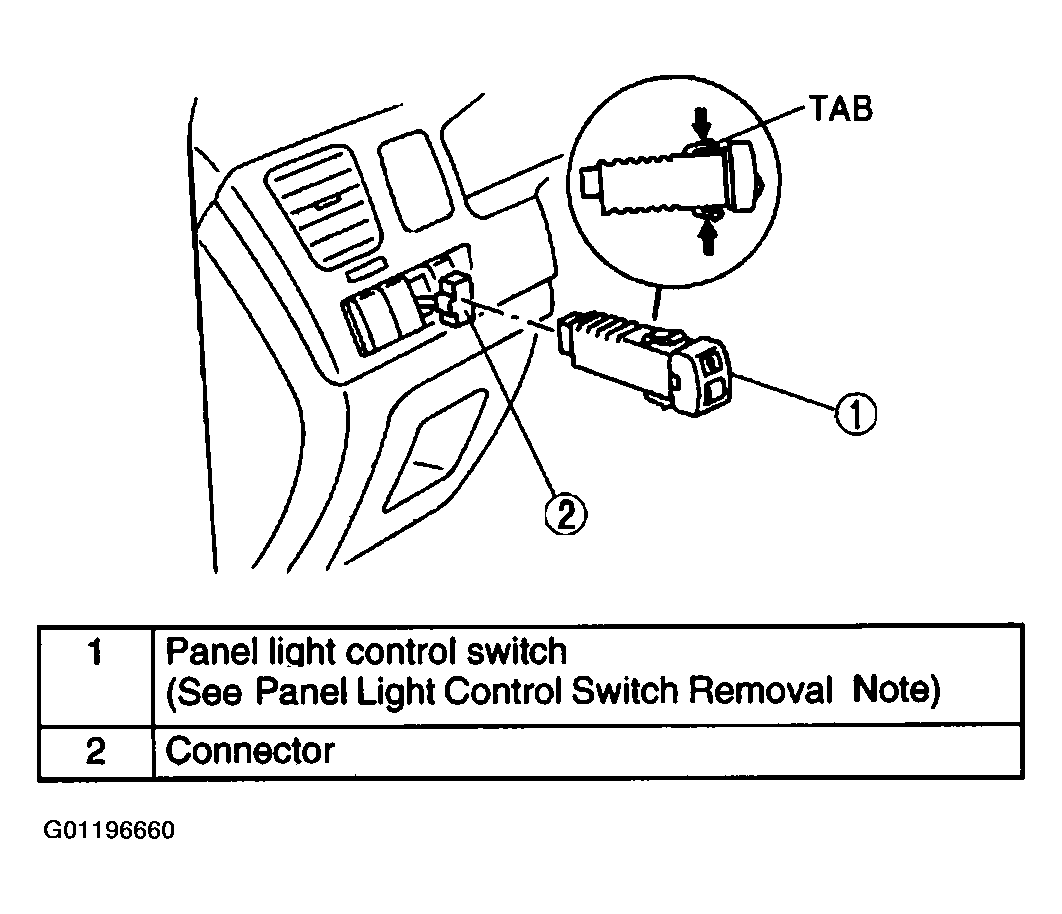

Fig 1: Removing Panel Light Control Switch
G01196660Courtesy of MAZDA MOTORS CORP.
