Home >> Mazda >> 2002 >> B4000 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Tailgate Removal/Installation >> Notes

Tailgate Removal/Installation: Notes

  1. Remove in order shown in figure.
  2. Install in reverse order of removal.

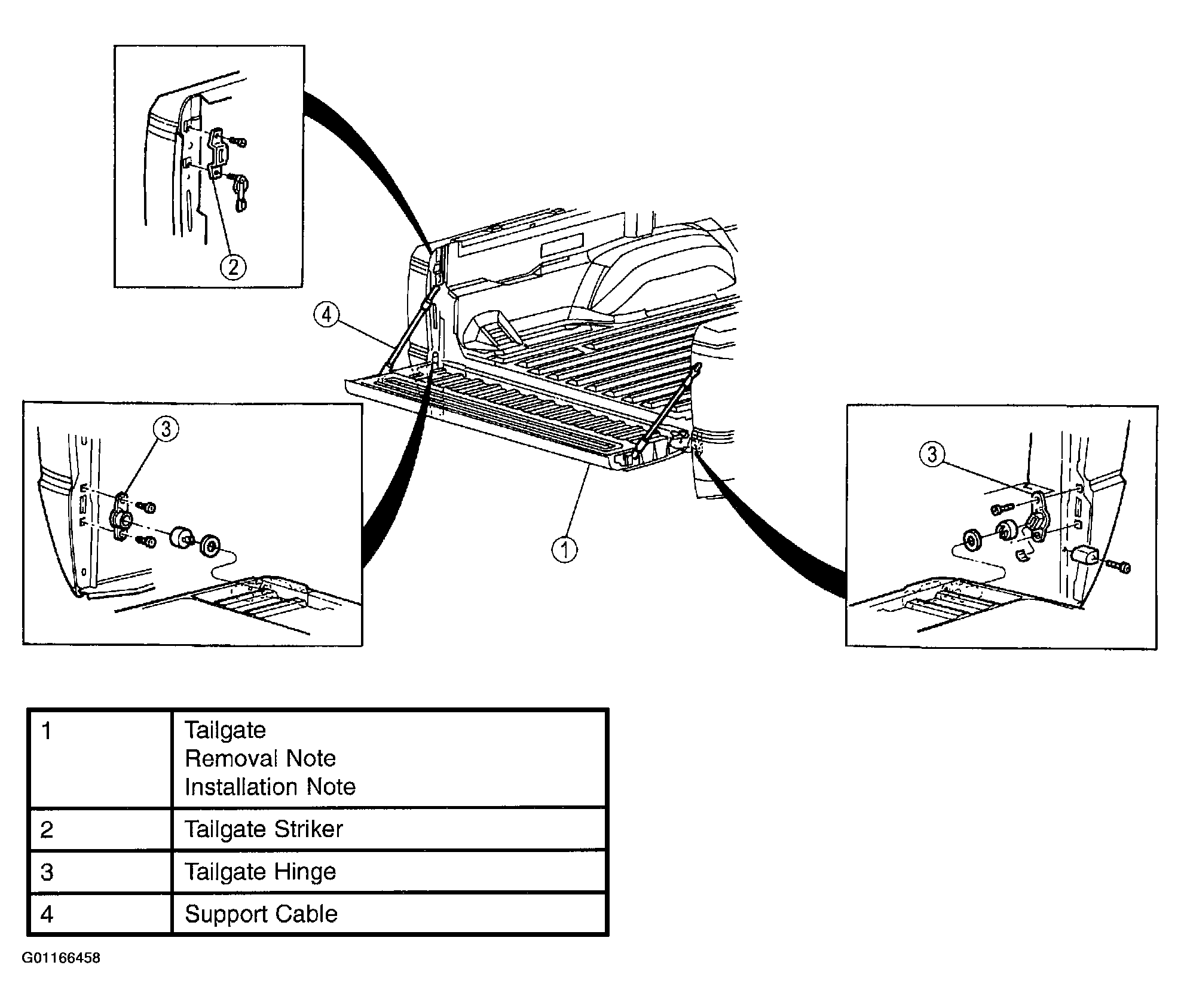

    Fig 1: Removing Tailgate
    G01166458Courtesy of MAZDA MOTORS CORP.
