Tailgate Inspection

Inspect the clearance between the tailgate and the rear bumper cover.
Clearance (1): 13-25 mm (0.51-0.98 in.)
Inspect the clearance between the tailgate and the rear lamp assembly.
Clearance (2): 3-9 mm (0.12-0.35 in.)

Fig 1: Inspecting Clearance Between Tailgate & Rear Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Inspect the clearance between the outer side body panel and the top, bottom and the forward portion of the rear lamp assembly.
Clearance (1): 0-0.3 mm (0-0.12 in.)

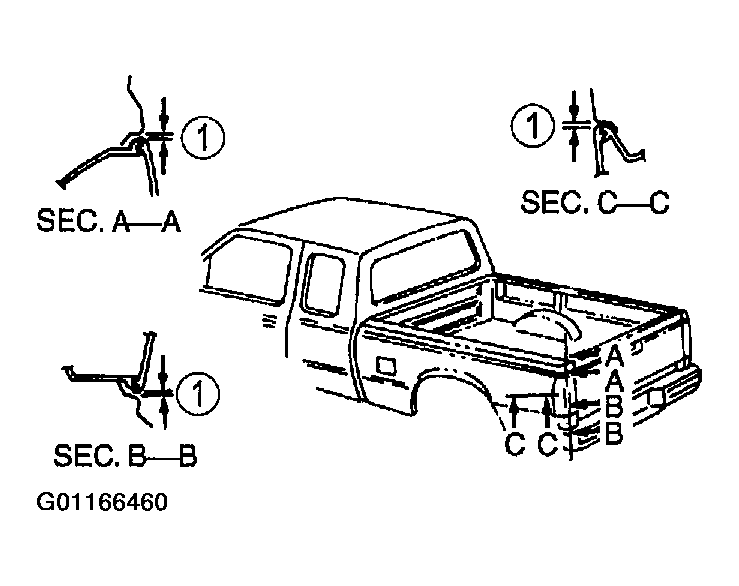

Fig 2: Inspecting Clearance Between Outer Side Body Panel & Top, Bottom & Forward Portion Of Rear Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
