Splash Shield Removal/Installation: Rear

  1. Remove screws.
  2. Remove splash shield (1)

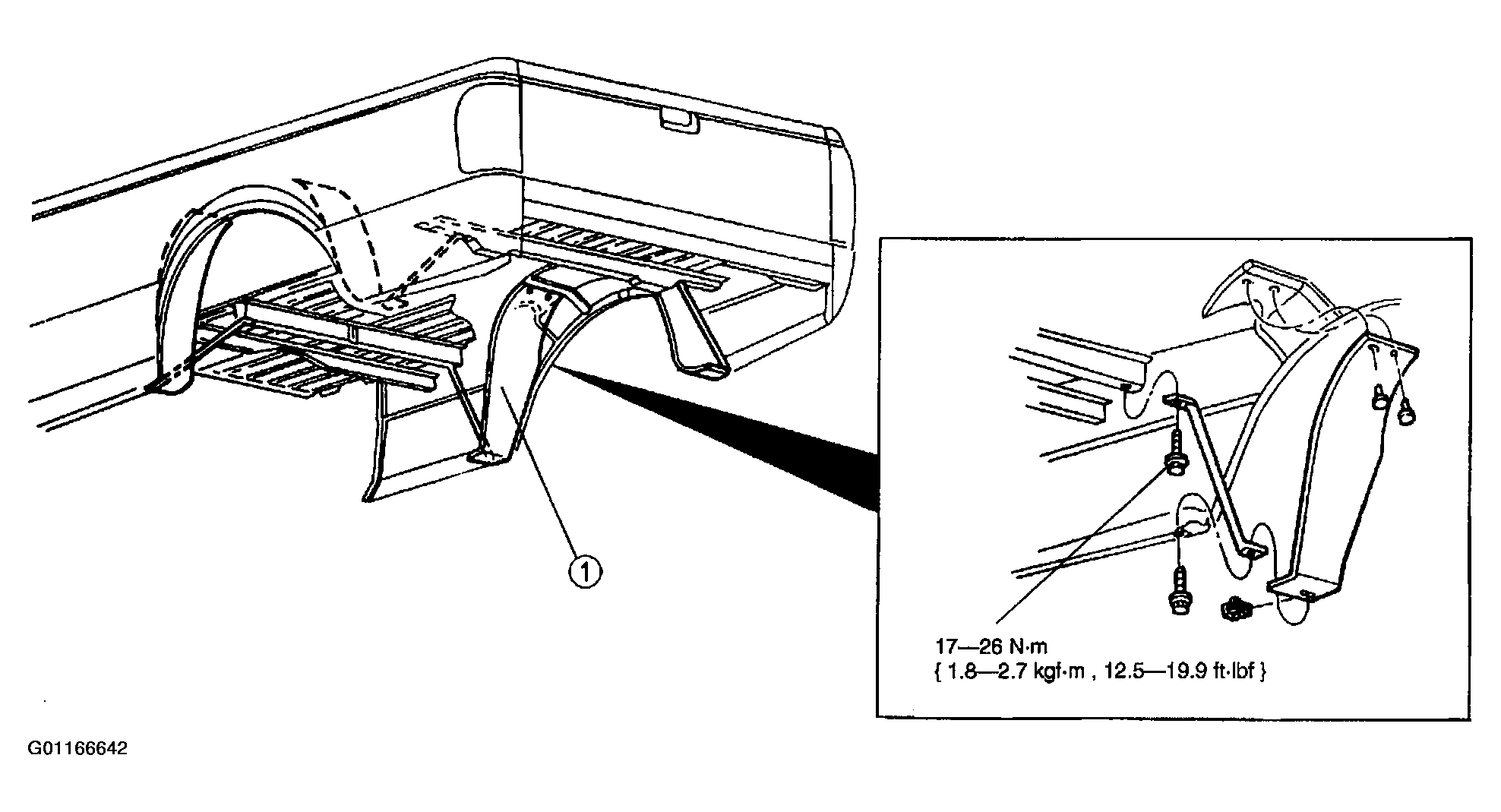

    Fig 1: Removing Rear Splash Shield
    G01166642Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
