Splash Shield Removal/Installation: Front

  1. Remove screws
  2. Remove splash shield (1).

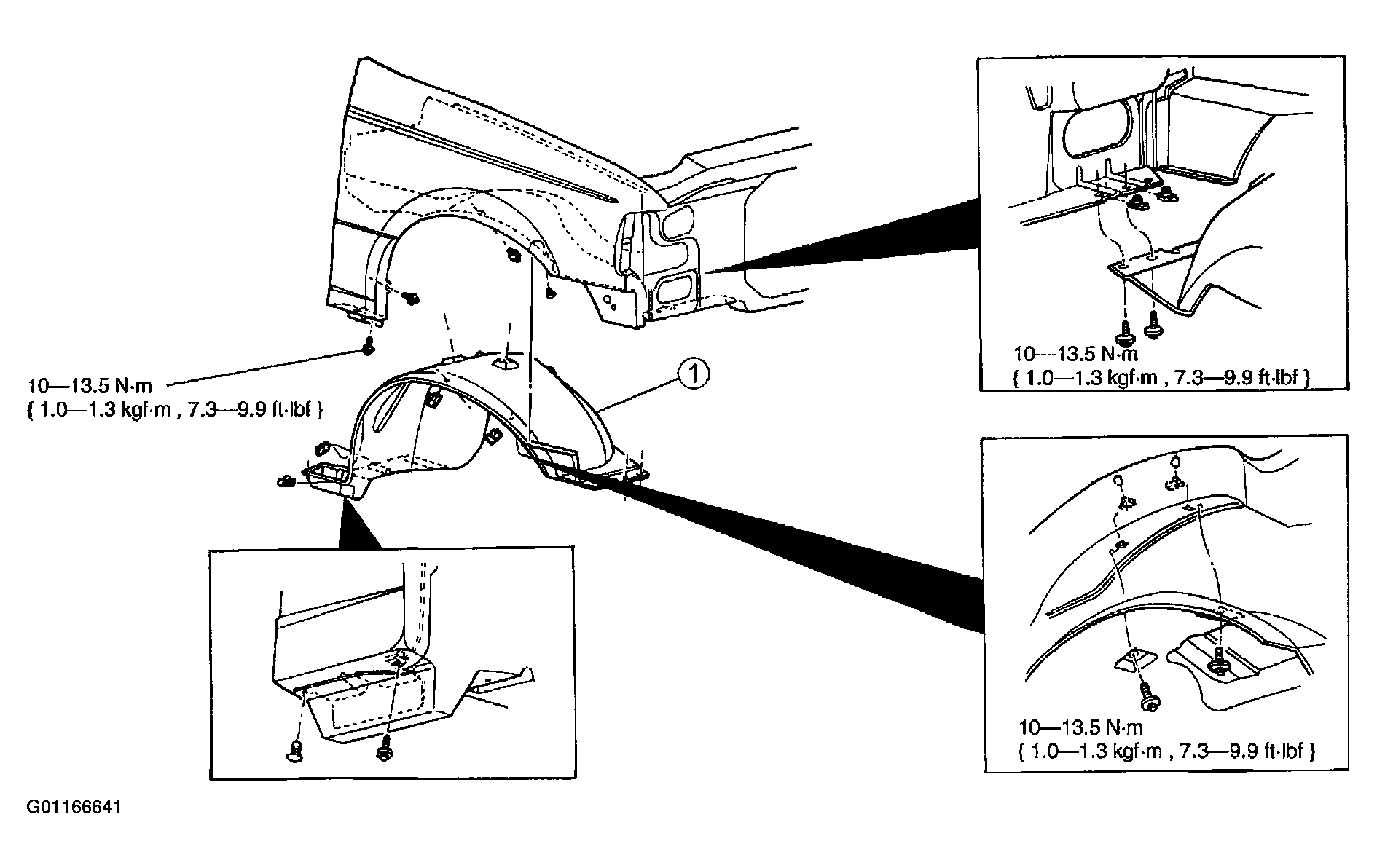

    Fig 1: Removing Front Splash Shield
    G01166641Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
