Front Door Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Disconnect the harness connector.
  3. Remove in order shown in figure.
  4. Remove front door lock striker.
  5. Install in reverse order of removal.

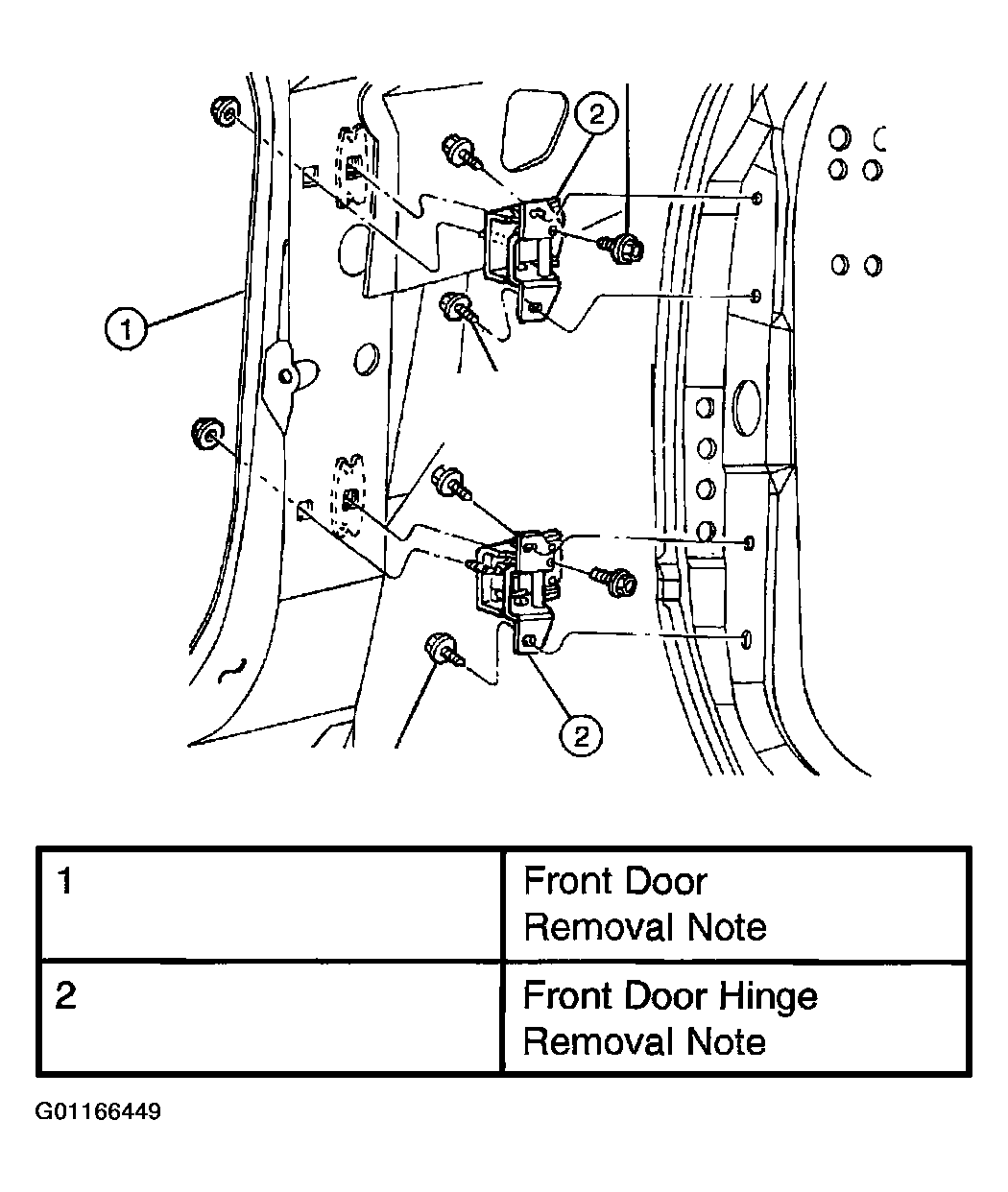

    Fig 1: Removing/Installing Front Door
    G01166449Courtesy of MAZDA MOTORS CORP.
