Front Suspension Components

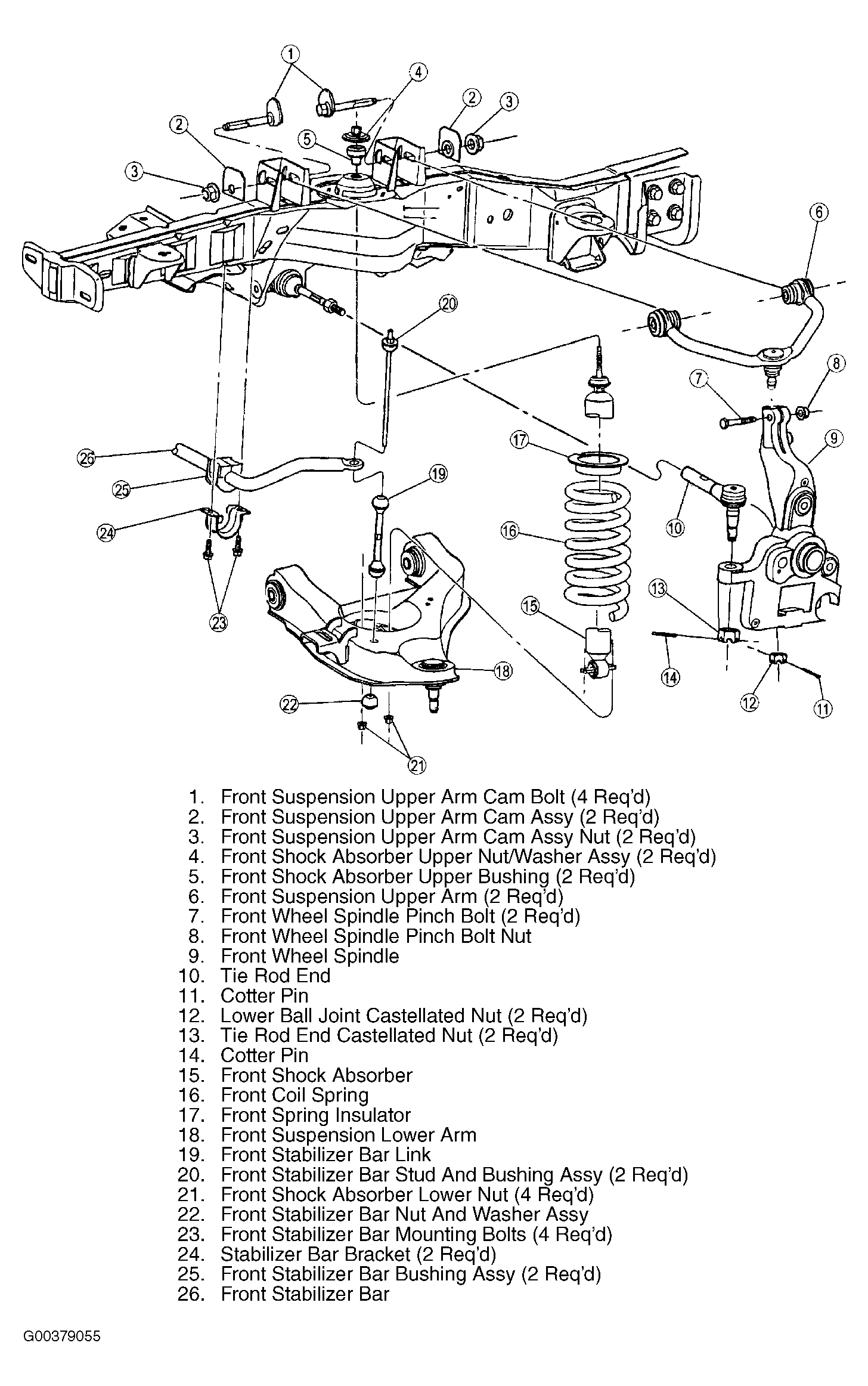

Fig 1: Front Suspension Components - 4X2
G00379055Courtesy of MAZDA MOTORS CORP.

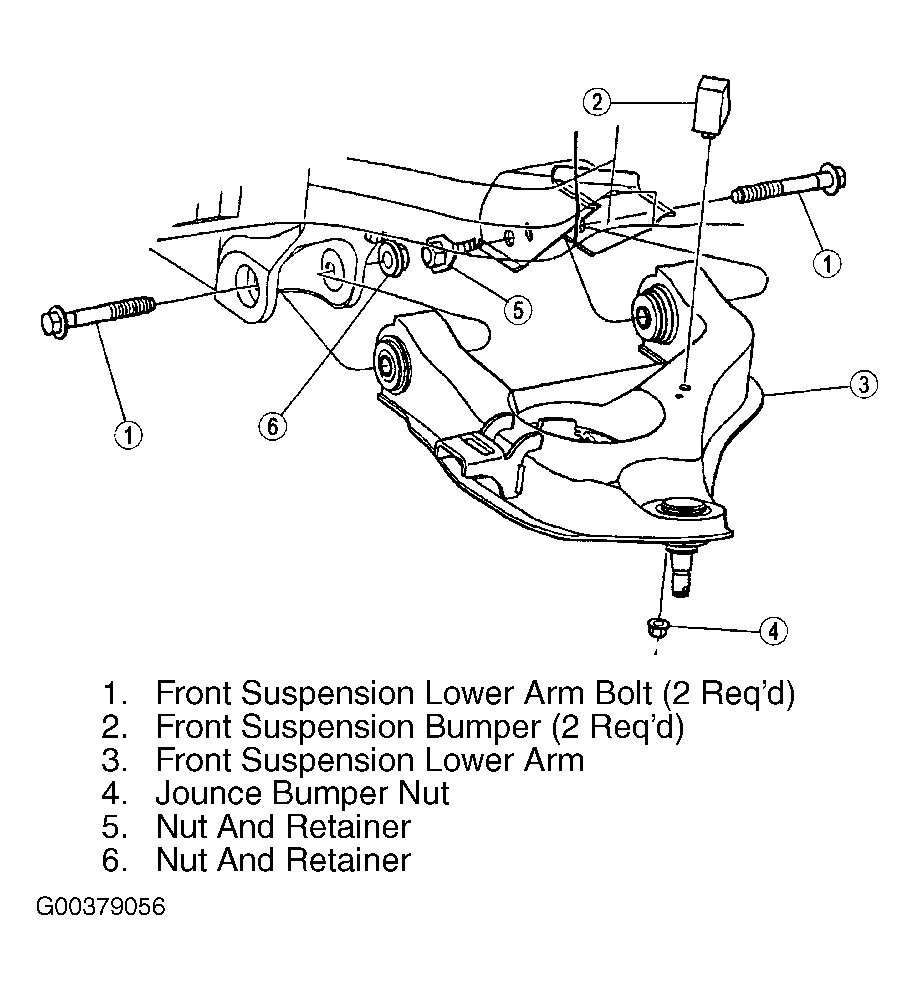

Fig 2: Lower Arm Components - 4X2
G00379056Courtesy of MAZDA MOTORS CORP.

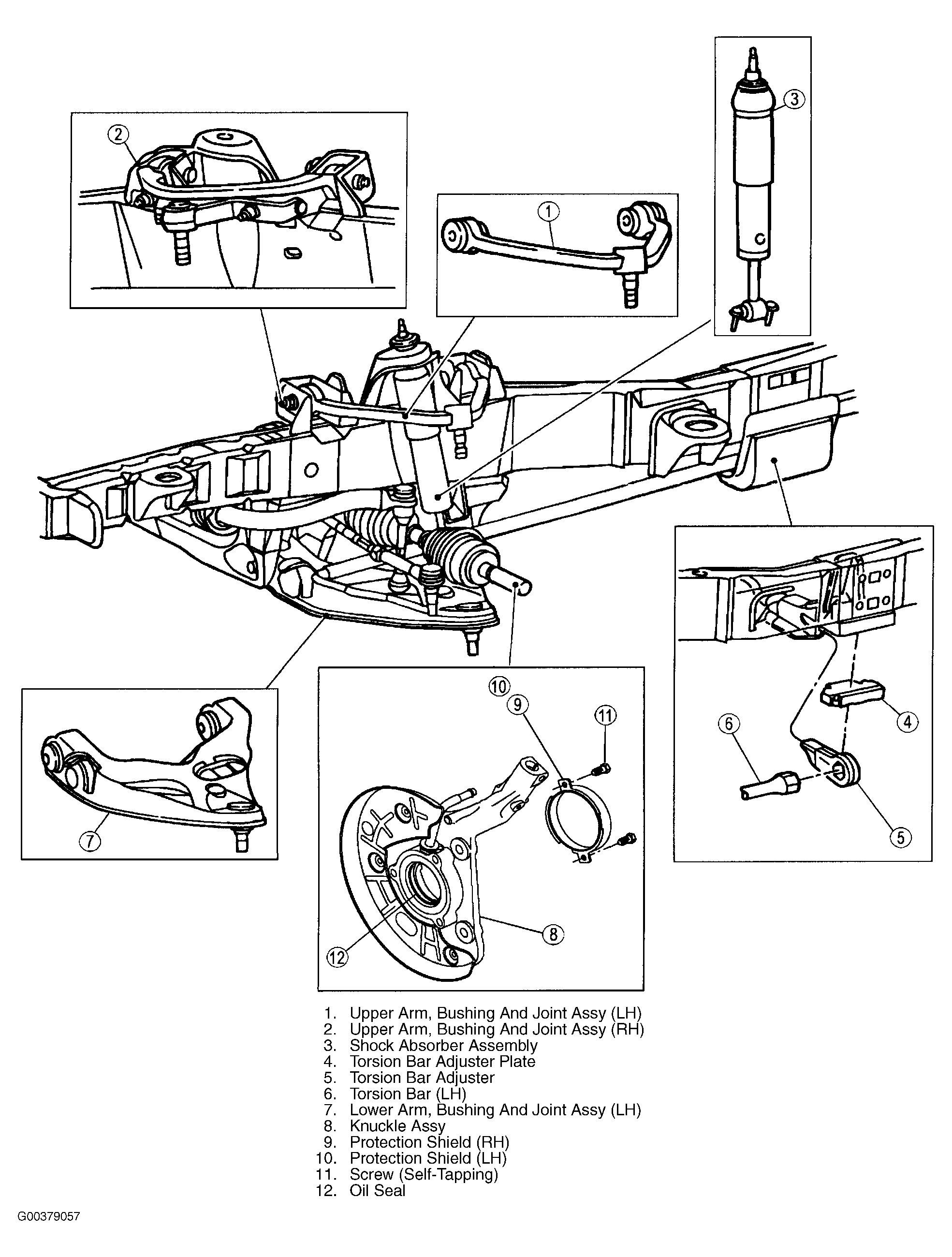

Fig 3: Front Suspension Components - 4X4
G00379057Courtesy of MAZDA MOTORS CORP.
