CII Pump Removal Note

  1. Remove the pump pulley. See POWER STEERING OIL PUMP PULLEY REMOVAL/INSTALLATION .
  2. Disconnect the power steering pressure hose.

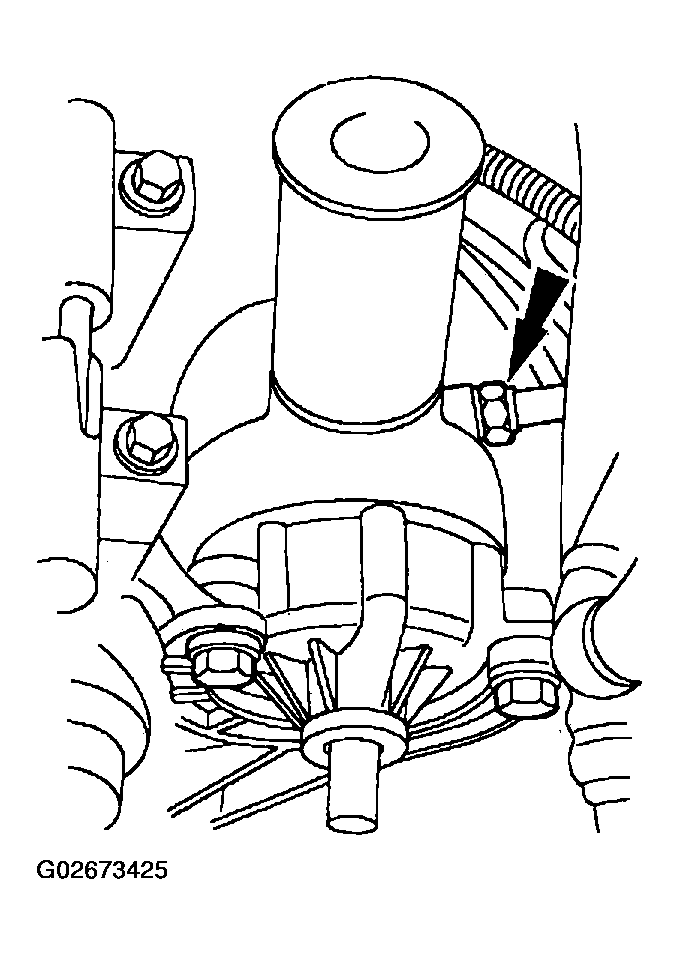

    Fig 1: Disconnecting Power Steering Pressure Hose
    G02673425Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the power steering return hose.
    Fig 2: Disconnecting Power Steering Return Hose
    G02673426Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the power steering return line hose.
  5. Remove the bolts and the power steering pump.

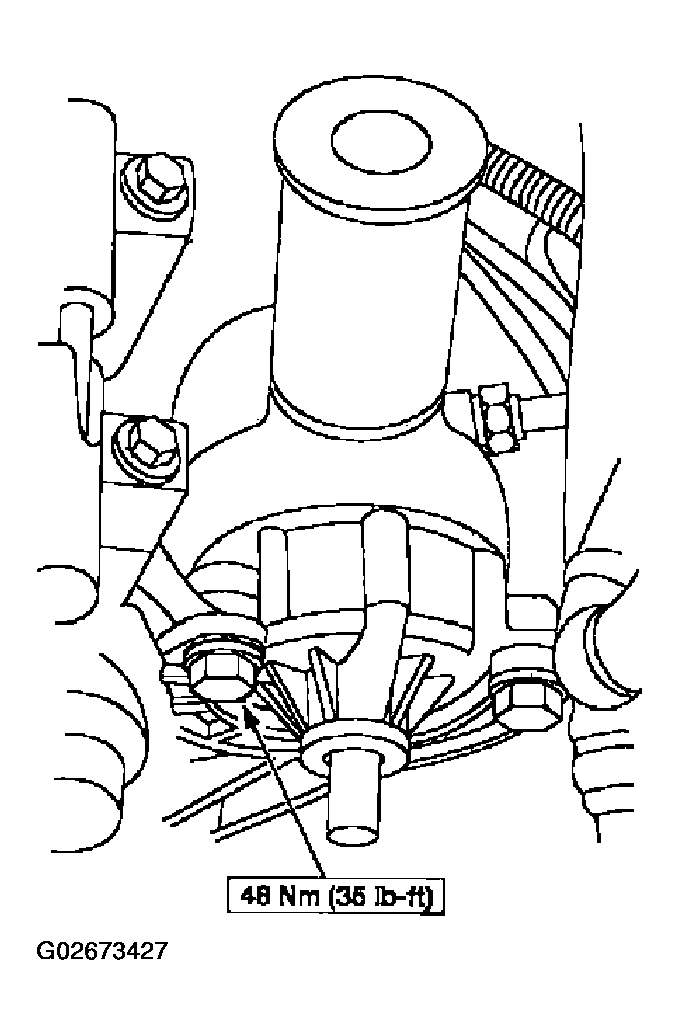

    Fig 3: Removing Power Steering Pump
    G02673427Courtesy of MAZDA MOTORS CORP.
