Windshield Wiper and Washer Switch

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the combination switch terminals using an ohmmeter.
- If not as specified, replace the wiper unit or the wiper lever.

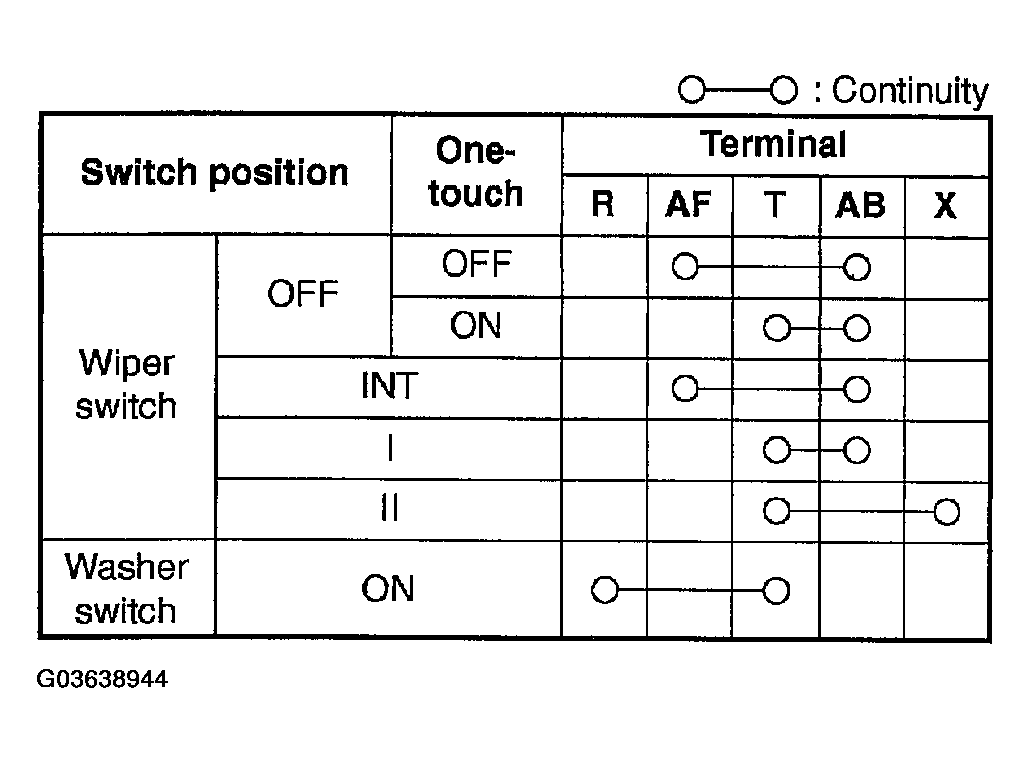

Fig 1: Windshield Wiper And Washer Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

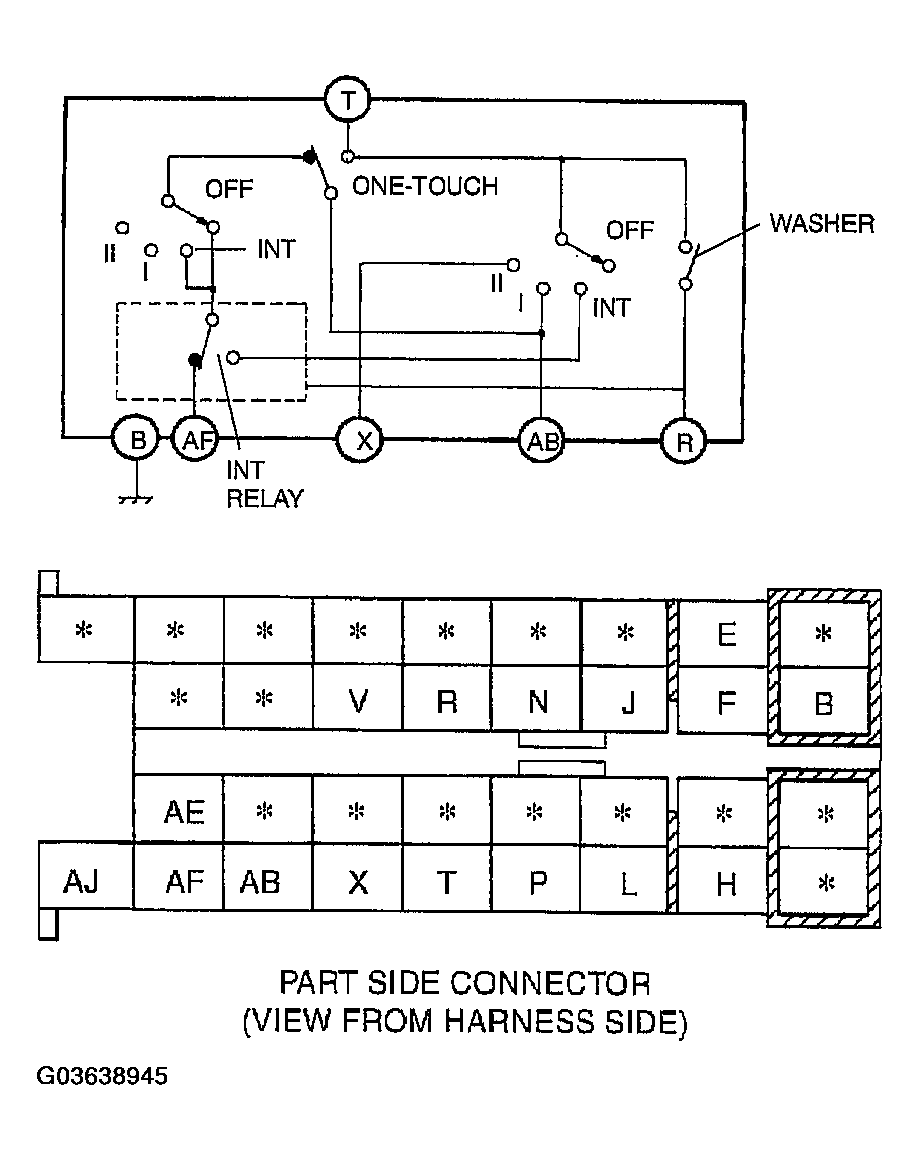

Fig 2: Inspecting Windshield Wiper And Washer Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
