Connector Identification

CAUTION: Tests performed at PCM harness connector terminals require installation of 104-Pin Breakout Box (49-UN01-130) to PCM harness. DO NOT directly probe harness connector terminals.

NOTE: Use the following illustrations to identify connector terminals referenced in testing. See Fig 1-Fig 9 . To identify circuits referenced in testing, see WIRING DIAGRAMS .

Fig 1: Identifying Instrument Cluster Harness Connector C-214 Terminals

G00063560

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Instrument Cluster Harness Connector C-215 Terminals

G00063561

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Instrument Cluster Harness Connector C-216 Terminals

G00063562

Courtesy of MAZDA MOTORS CORP.

Fig 4: Identifying Fuel Gauge Sending Unit Harness Connector B-422 Terminals

G00063563

Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying ABS Control Module Harness Connector O-154 Terminals

G00063567

Courtesy of MAZDA MOTORS CORP.

Fig 6: Identifying Cruise Control Servo Harness Connector N-165 Terminals

G00063568

Courtesy of MAZDA MOTORS CORP.

Fig 7: Identifying GEM Harness Connector T-221 Terminals

G00063565

Courtesy of MAZDA MOTORS CORP.

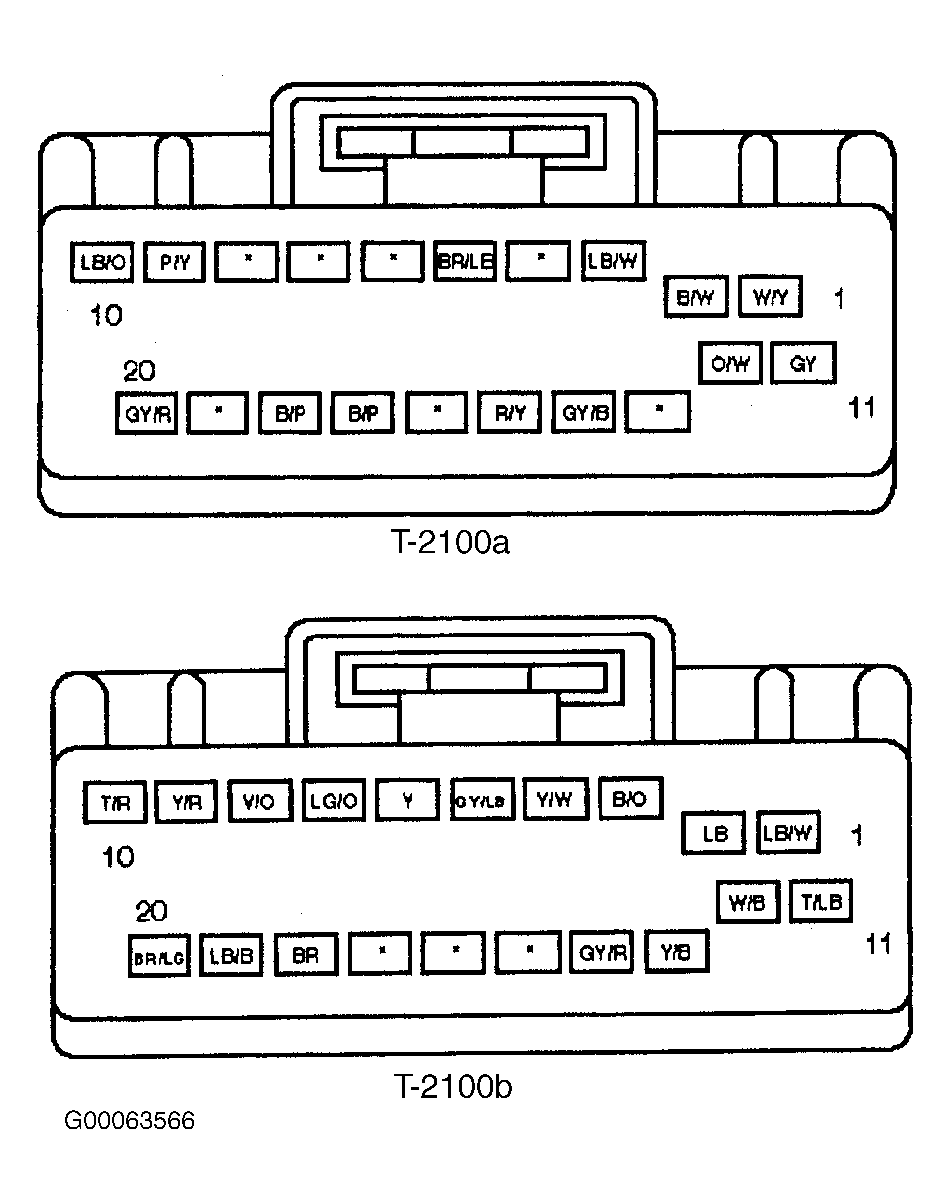

Fig 8: Identifying GEM Harness Connector T-2100a & T-2100b Terminals

G00063566

Courtesy of MAZDA MOTORS CORP.

Fig 9: Identifying Headlight Switch Harness Connector X-205 Terminals

G00063564

Courtesy of MAZDA MOTORS CORP.
