Generator Connector End View (C102a)
Generator Connector End View (C102a)

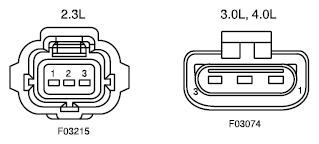

Fig 1: Identifying Generator Connector (C102A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Circuit function
1
904 (LG/RD)
Generator/Battery indicator, control
2
4 (WH/BK)
Generator regulator... S... terminal, to generator... S...terminal...3.0L, 4.0L
3
36 (YE/WH)
Voltage supplied at all times (overload protected)
