Front Suspension System: Specifications

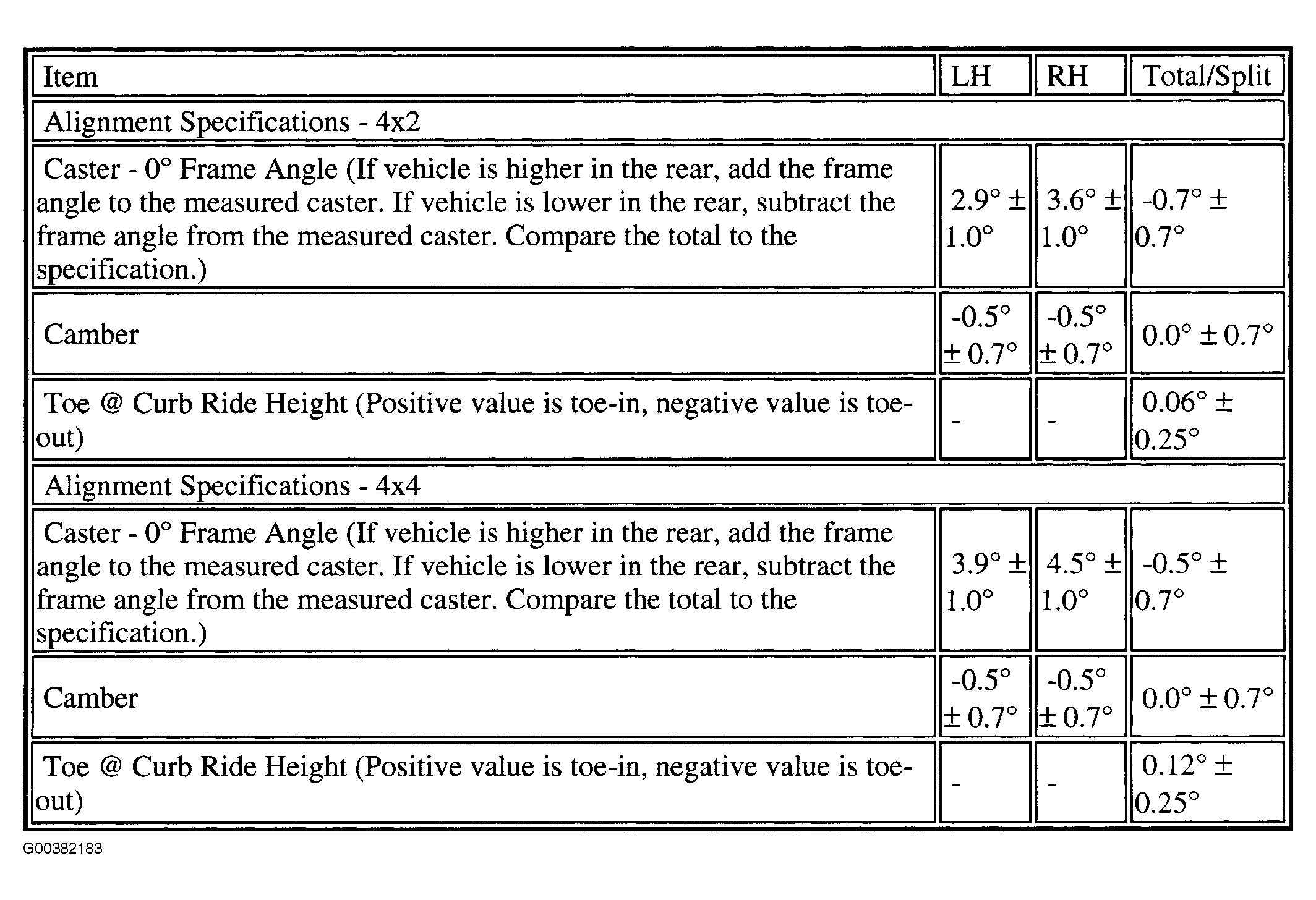

Fig 1: Specifications - Suspension

G00382183

Courtesy of MAZDA MOTORS CORP.

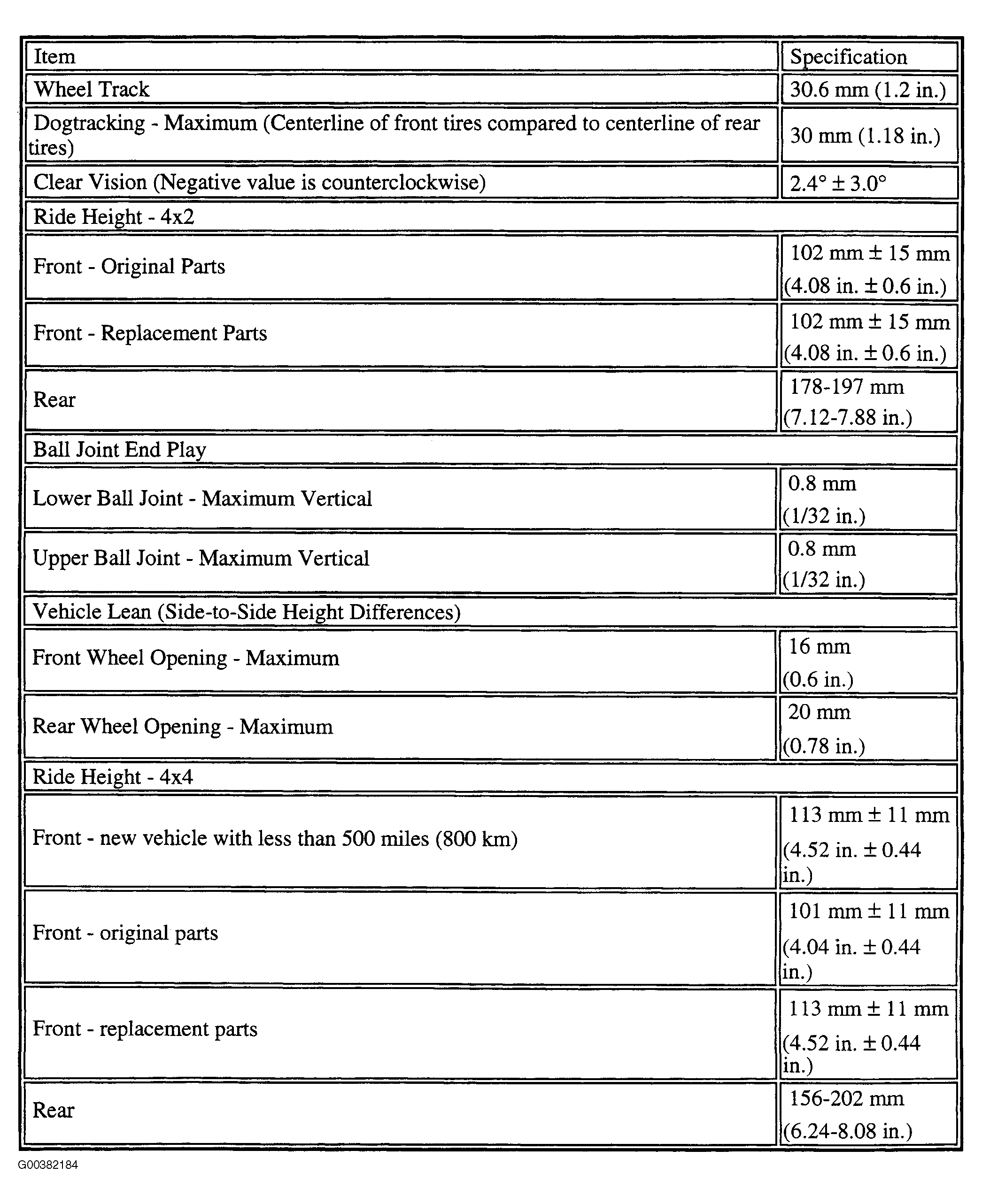

Fig 2: Specifications - General

G00382184

Courtesy of MAZDA MOTORS CORP.
