Evaporative Emission (EVAP) Control System Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear differential. (See REAR DIFFERENTIAL REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1.
Install in the reverse order of removal.

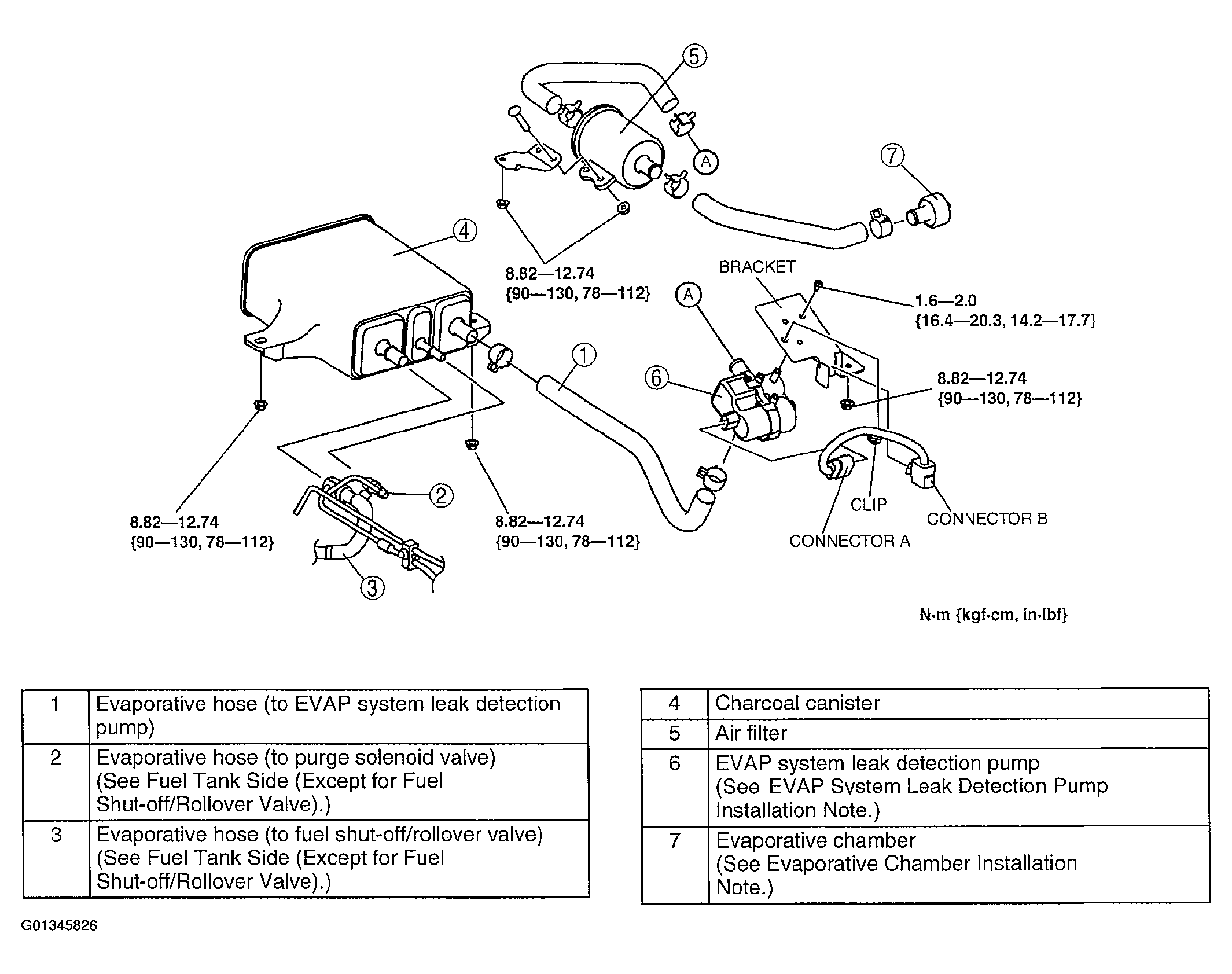

Fig 1: Removing/Installing Evaporative Emission Control System
Courtesy of MAZDA MOTORS CORP.
