Console Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

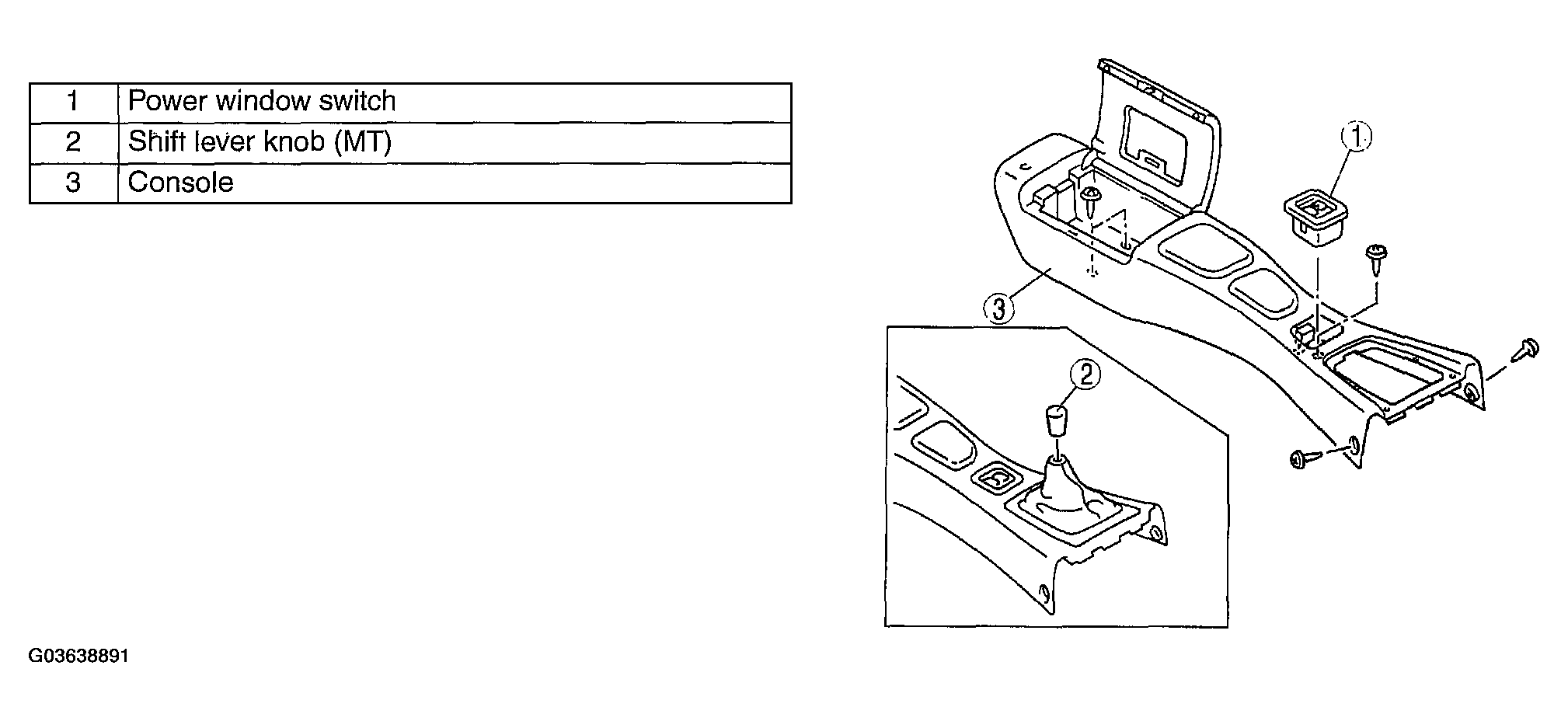

    Fig 1: Removing Console
    G03638891Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
