Removal & Installation: Sub-Switch

  1. Disconnect negative battery cable.
  2. Remove door trim panel. See REAR DOOR TRIM  .
  3. Remove screw(s) securing sub-switch to door trim panel.

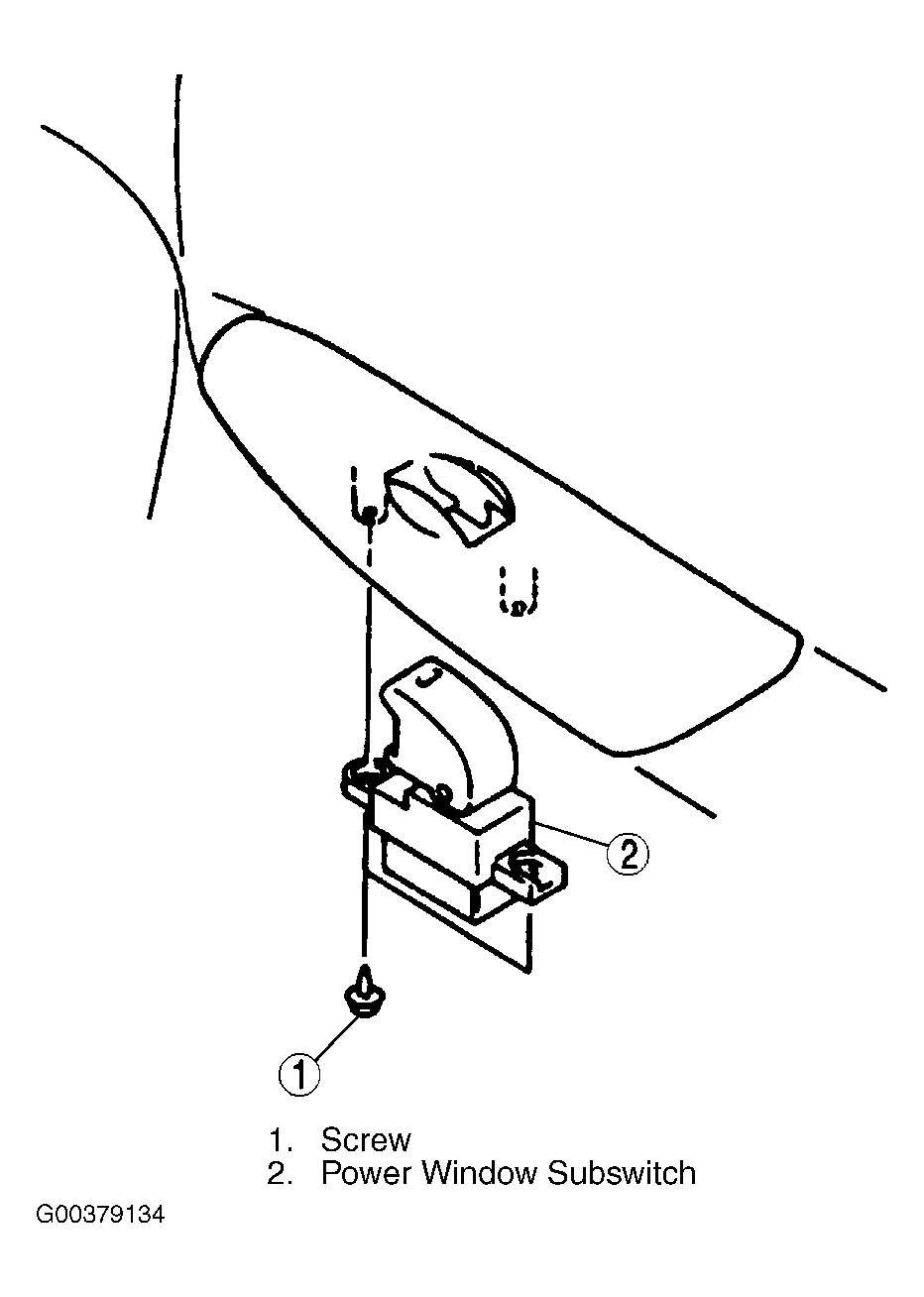

    Fig 1: Removing Sub-Switch
    G00379134Courtesy of MAZDA MOTORS CORP.
  4. Pull out sub-switch and disconnect electrical connector.
  5. Remove sub-switch.
  6. To install, reverse removal procedure.
