Clutch Unit Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

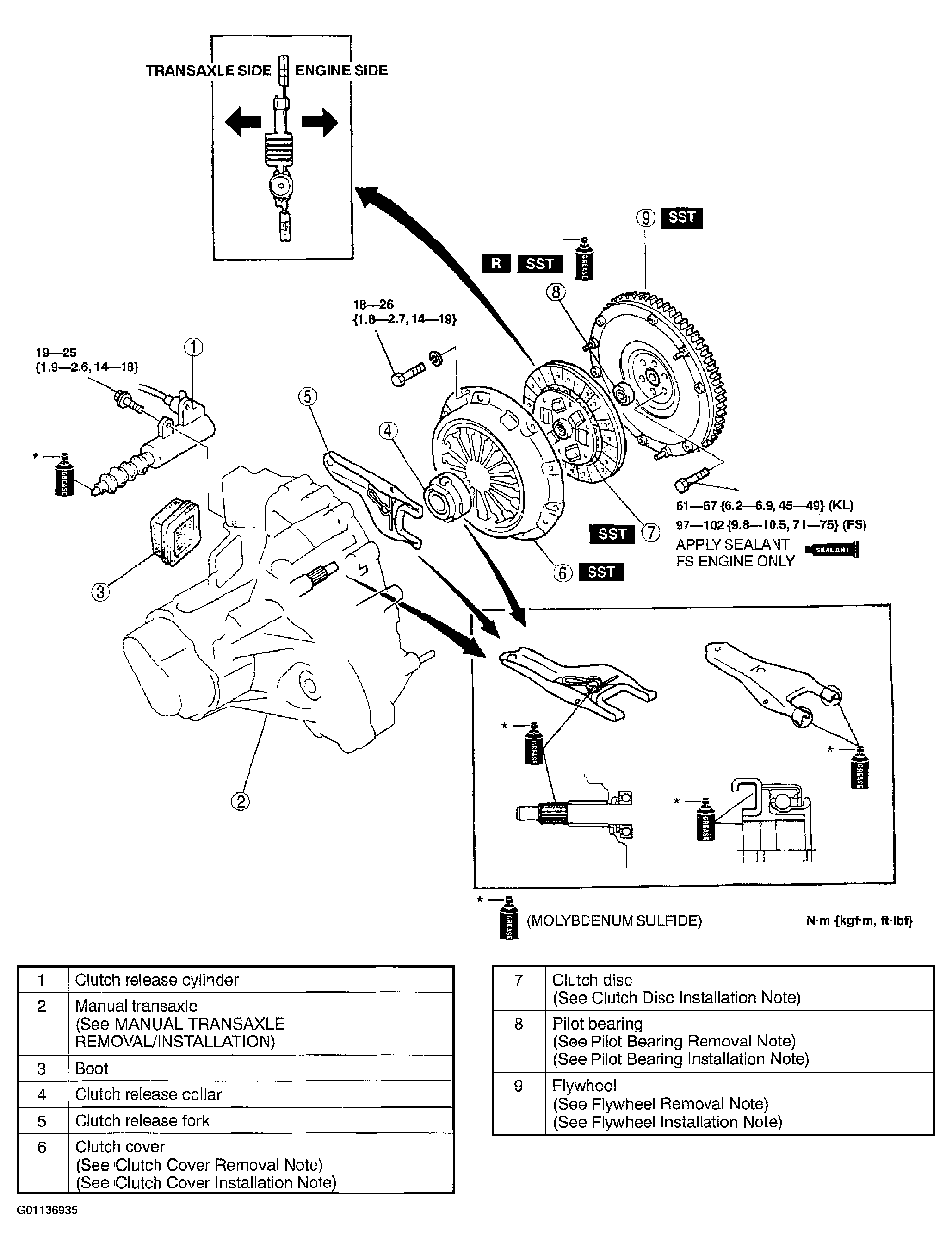

Fig 1: Removing/Installing Clutch Unit
G01136935Courtesy of MAZDA MOTORS CORP.
