Cooling Fan Motor Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the vehicle on a two-post lift.
  2. Disconnect the negative battery cable.
  3. Remove the radiator grille. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the transverse member and the engine mount member. (See ENGINE REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the figure.

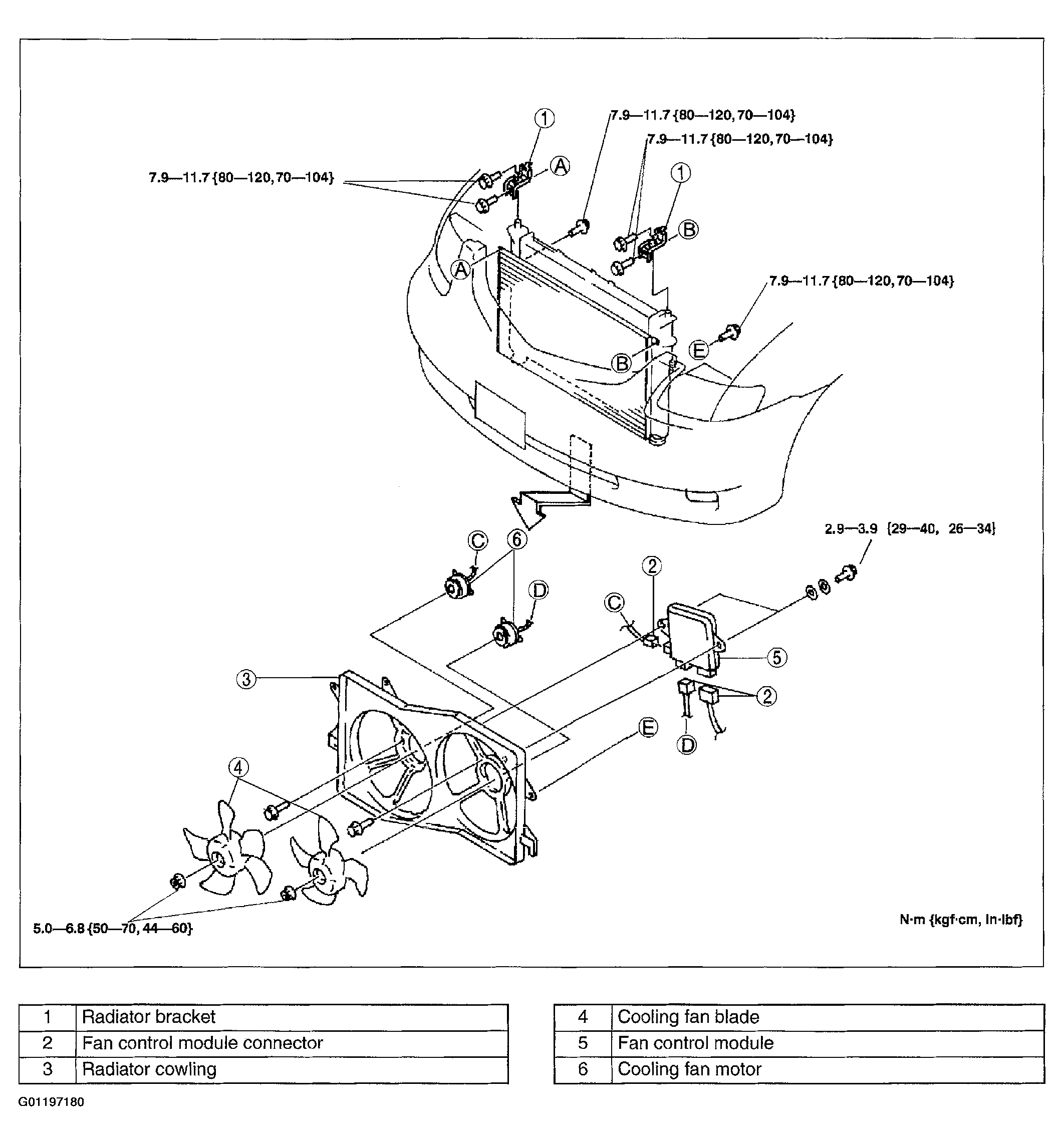

    Fig 1: Removing/Installing Cooling Fan Motor
    G01197180Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
