Oil Pan Upper Block Installation Note

Apply silicone sealant to the oil pump as shown.
Thickness

2.0-3.0 mm {0.08-0.11 in}

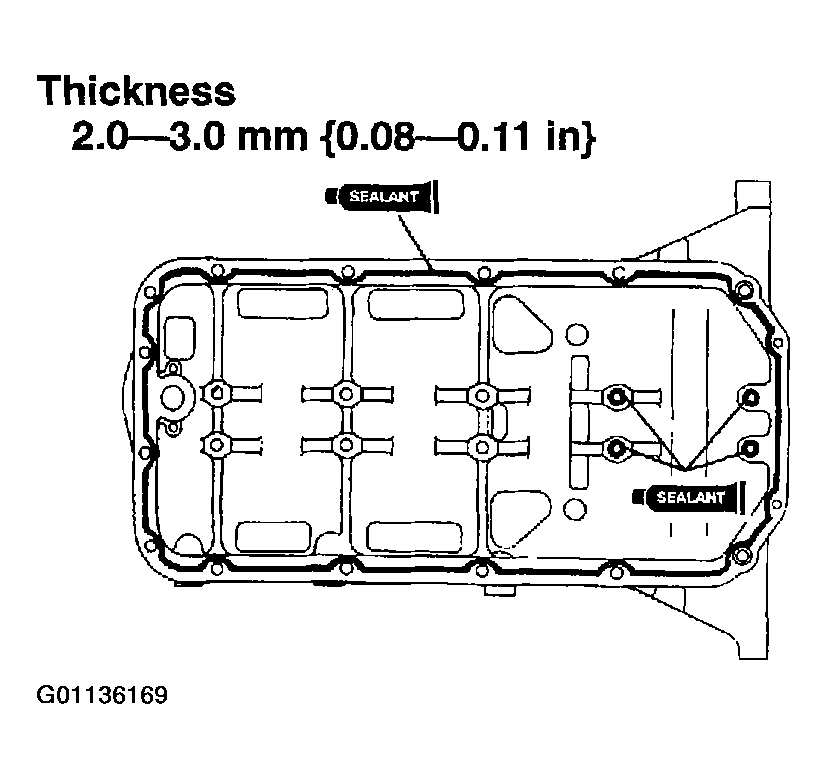

Fig 1: Identifying Oil Pan Upper Block Sealant Application
Courtesy of MAZDA MOTORS CORP.
Tighten bolts A.
Tighten the oil pan upper block bolts in 2 or 3 steps in the order shown.

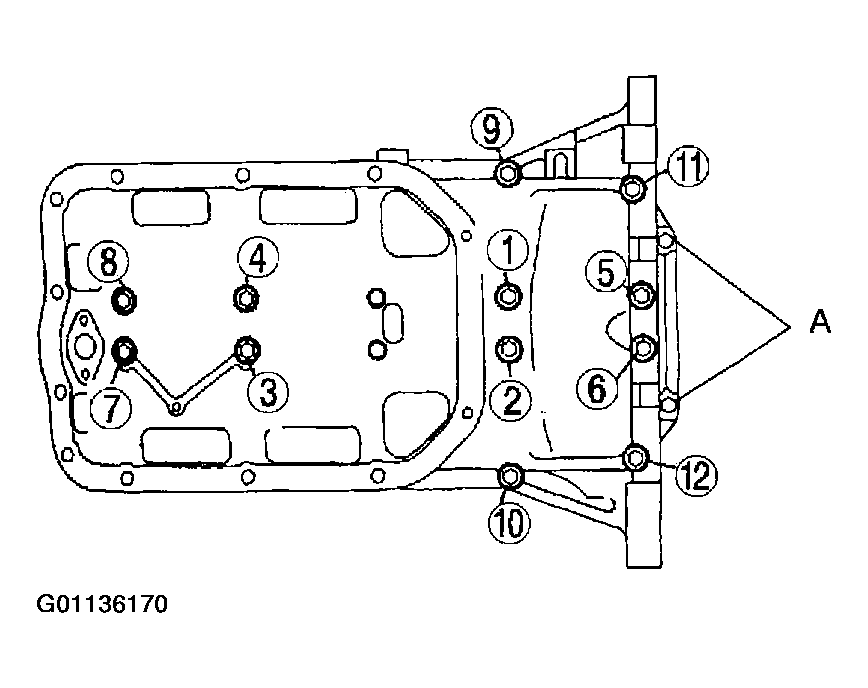

Fig 2: Oil Pan Upper Block Bolts Torque Sequence
Courtesy of MAZDA MOTORS CORP.
