DTC C1095: Pump Motor Relay
DTC C1095: Pump Motor Relay
Diagnostic Procedure

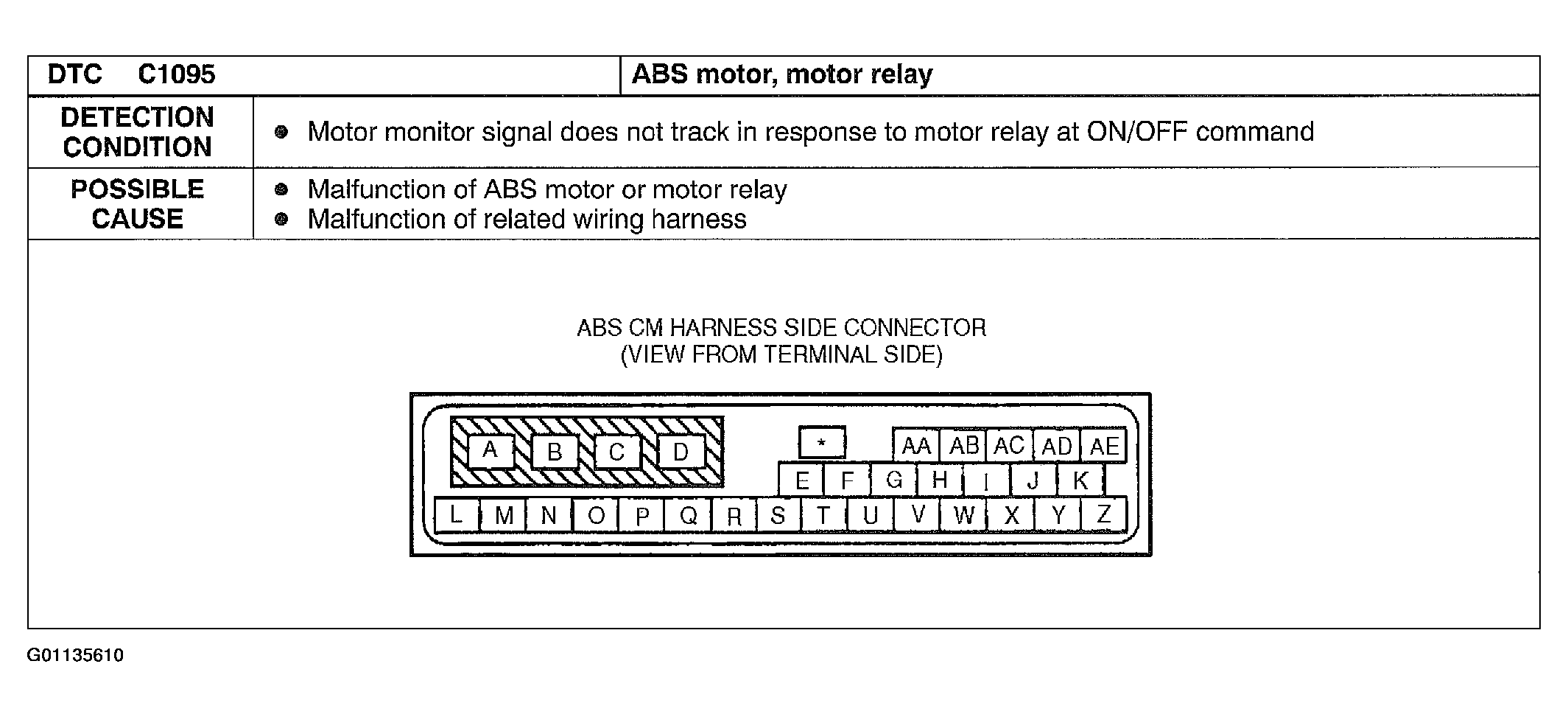

Fig 1: DTC C1095 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.

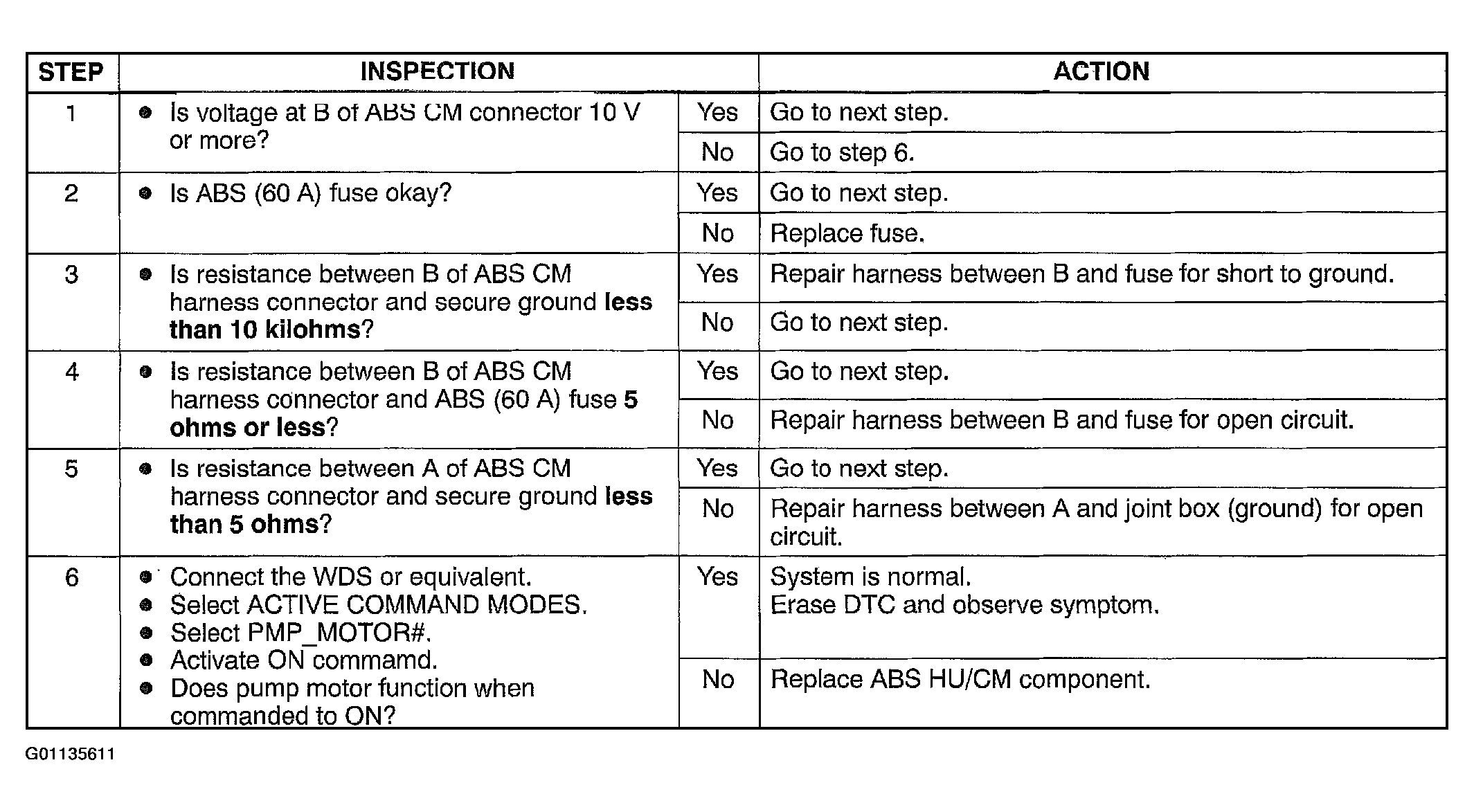

Fig 2: DTC C1095 Inspection & Action
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
