Mazda
>>
2002
>>
626 ES, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Anti-Lock/Traction Control System
>>
Brakes Technical Data
Brakes Technical Data

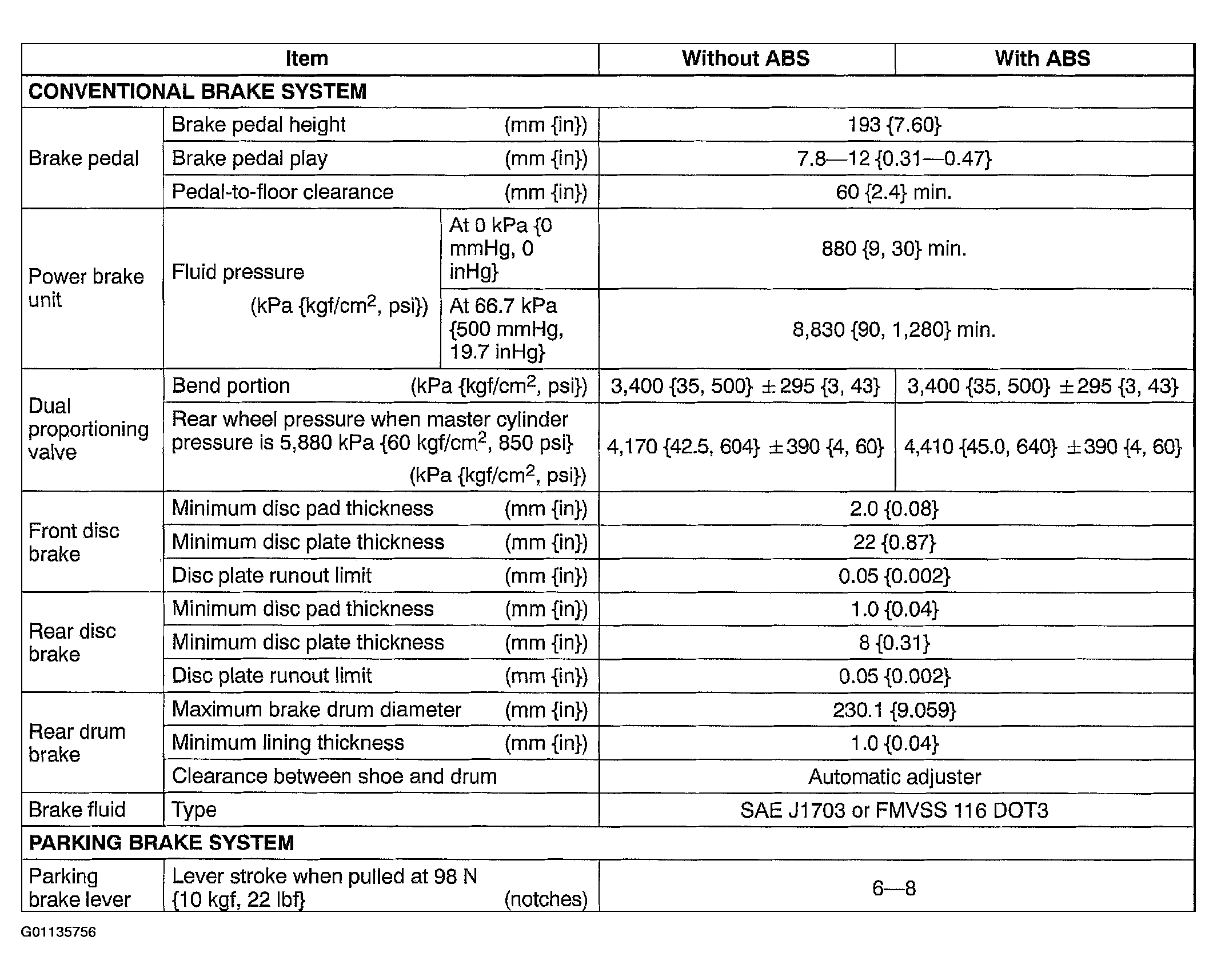

Fig 1: Brake Systems Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
