Active Command Modes Table

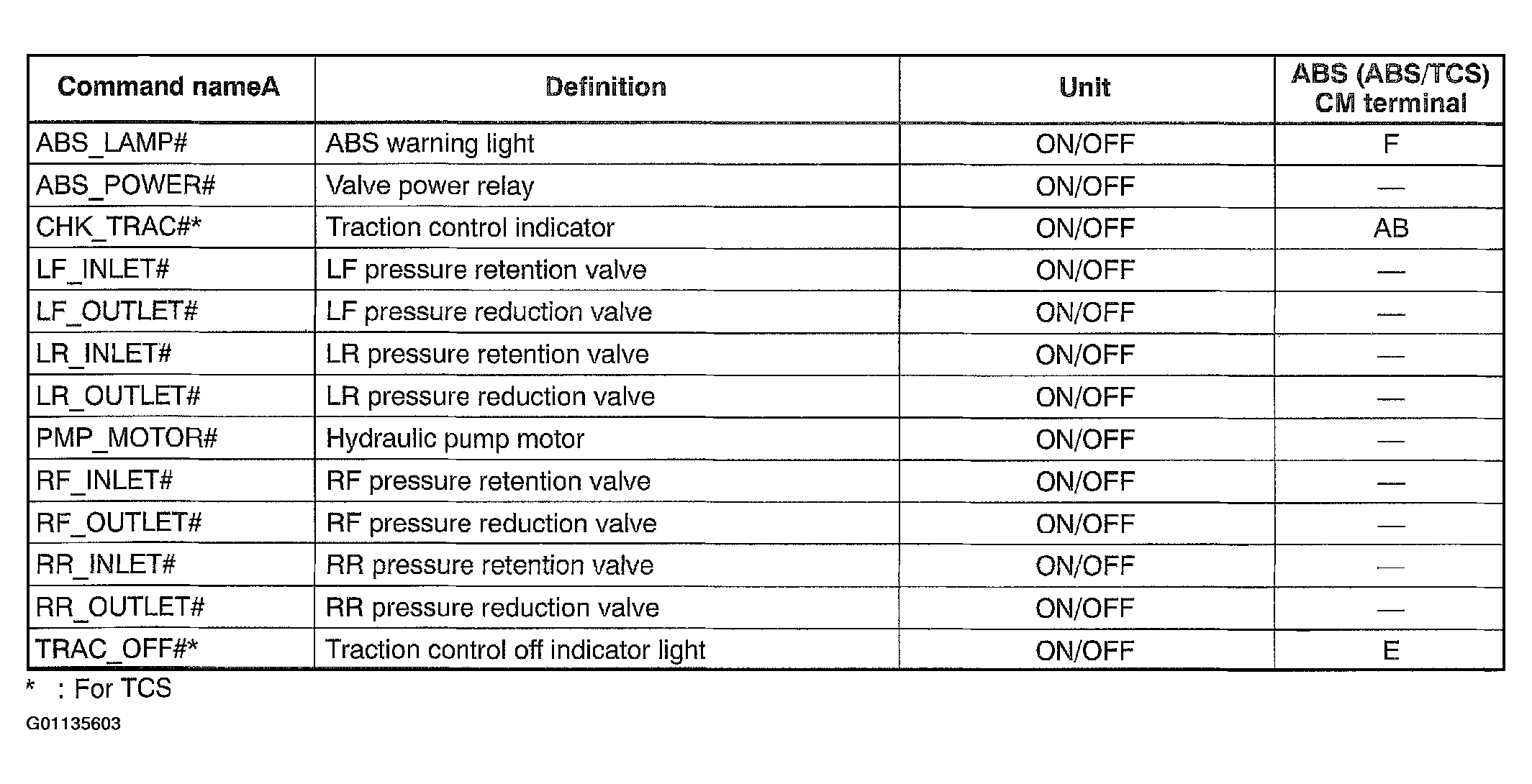

Fig 1: Active Command Modes Table
G01135603Courtesy of MAZDA MOTORS CORP.
NOTE:
  • When operating each valve forcibly, turn ABS_POWER# on, and then each command on. ABS_POWER# regulates the power supply for the eight valves.
