Anti-Theft System: Programming: Transmitter

When a transmitter is being replaced or added to a vehicle, new transmitter(s) need to be programmed into system. See Fig 1 . Lost transmitters should be programmed out of keyless entry system. This is accomplished by repeating programming for the first or second transmitter until 3 total programs are entered (old transmitter program will then be gone).

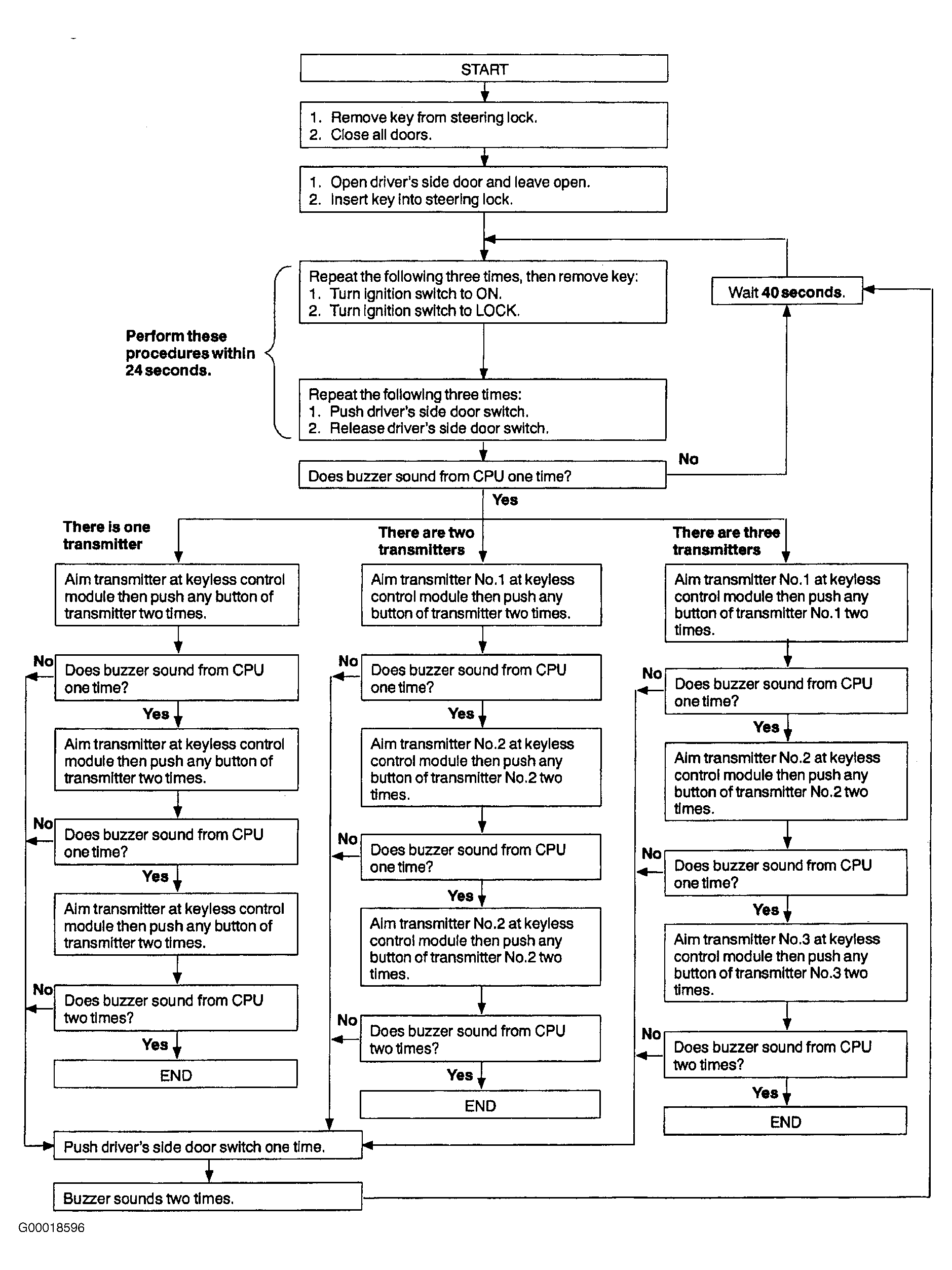

Fig 1: Programming Transmitter(s) Into Keyless Entry System

Courtesy of MAZDA MOTORS CORP.
