Rear Wheel Alignment: Specifications

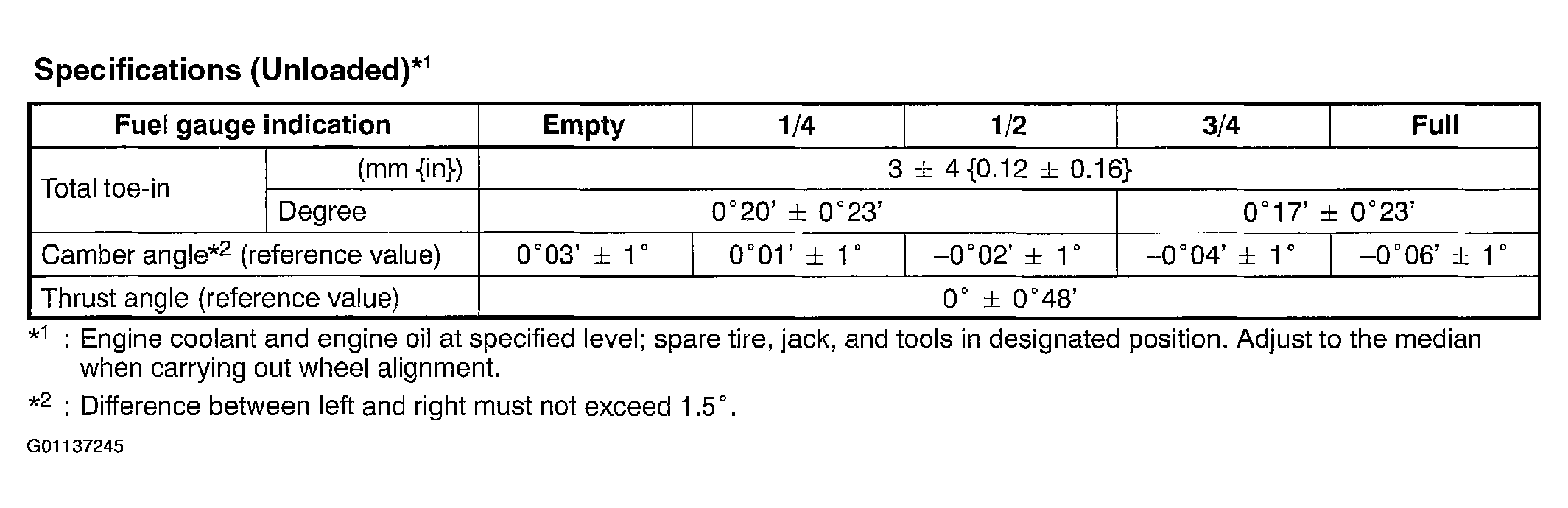

Fig 1: Rear Wheel Alignment Specifications (Unloaded)

G01137245

Courtesy of MAZDA MOTORS CORP.
