Maximum Steering Angle Adjustment

  1. Loosen the tie-rod end locknuts.
  2. Remove the steering gear boot clamp.
  3. Turn the tie rods to equalize the length L.

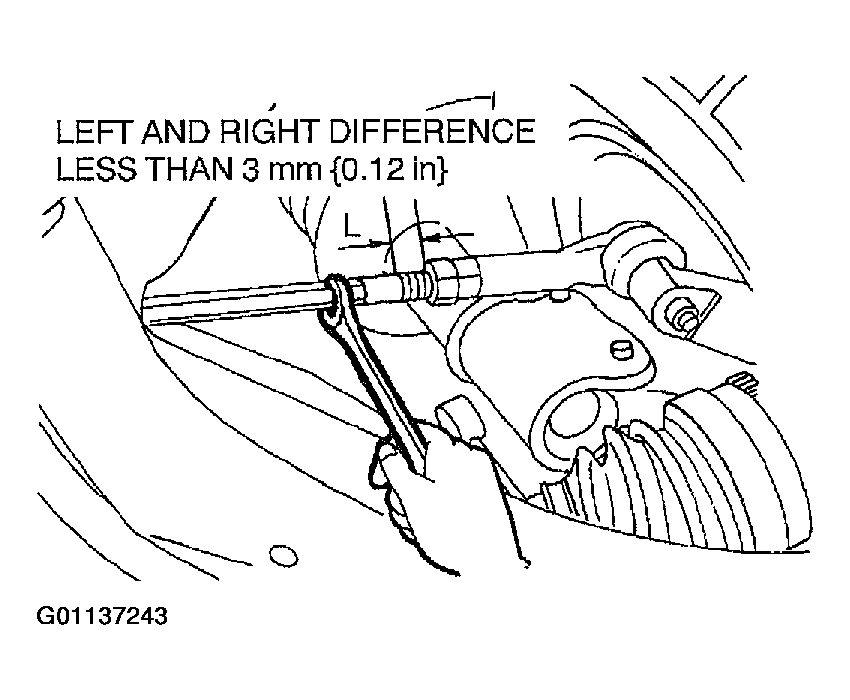

    Fig 1: Adjusting Tie Rod Length
    G01137243Courtesy of MAZDA MOTORS CORP.

    Maximum left/right difference 3 mm {0.12 in}

    NOTE:
    • Turn the tie rods equally.
  4. Turn the tie rod to provide the correct maximum steering angle.
  5. Tighten the tie-rod end locknuts.

    Tightening Torque

    69-98 N.m {7.0-10.0 kgf.m, 51-72 ft.lbf}

  6. Verify that the boot is not twisted, and install the boot clamp.
  7. Adjust the toe-in after adjusting the steering angle.
