Accelerator Cable Adjustment

Move the white locking tab A to the unlock position.
Turn stopper B to the unlock position.
NOTE:
- If stopper B will not unlock, it may be necessary to carefully bend tab C out by using a suitable tool.
To adjust the free play, push or pull the throttle cable housing directly behind the spring.
Turn stopper B to the lock position.
Free play

1.5-4.0 mm {0.06-0.15 in}

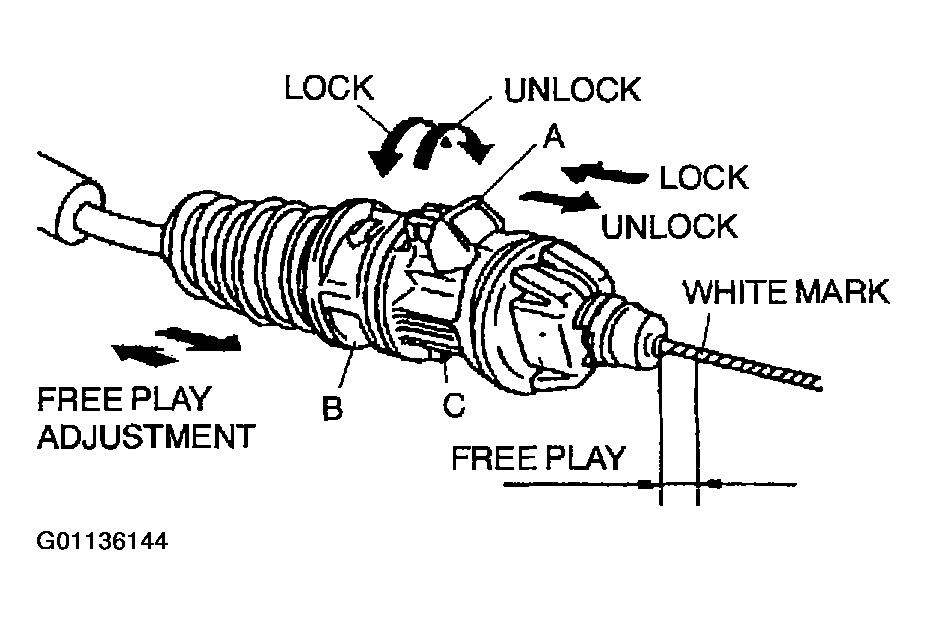

Fig 1: Identifying Accelerator Cable Adjustment
Courtesy of MAZDA MOTORS CORP.
Measure the throttle cable free play, making sure that it is within the specification.
Move the white locking tab A to the lock position.
Confirm the correct accelerator operation.
