Windshield Wiper Motor Connector End View

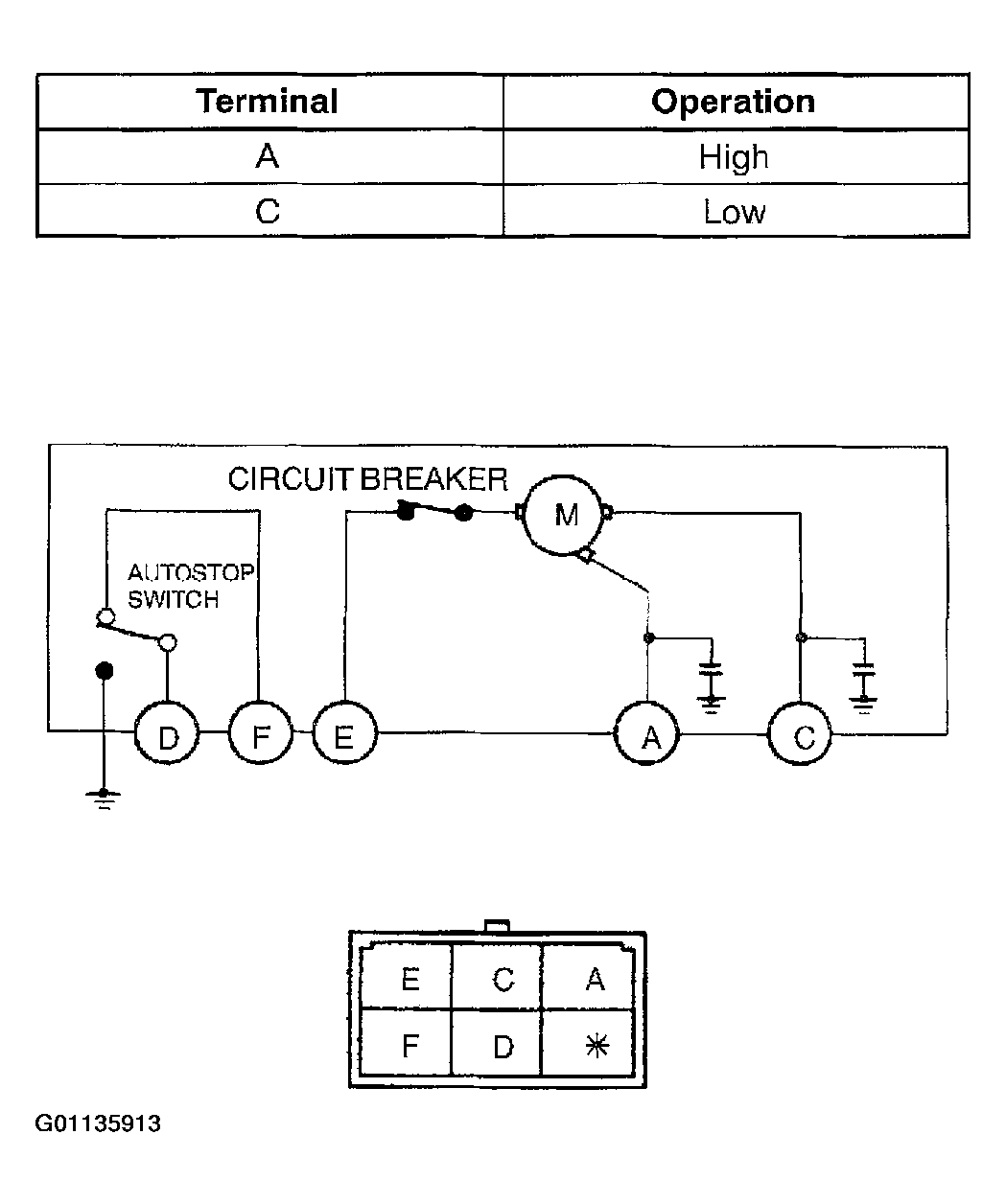

Fig 1: Windshield Wiper Motor Connector End View
G01135913Courtesy of MAZDA MOTORS CORP.

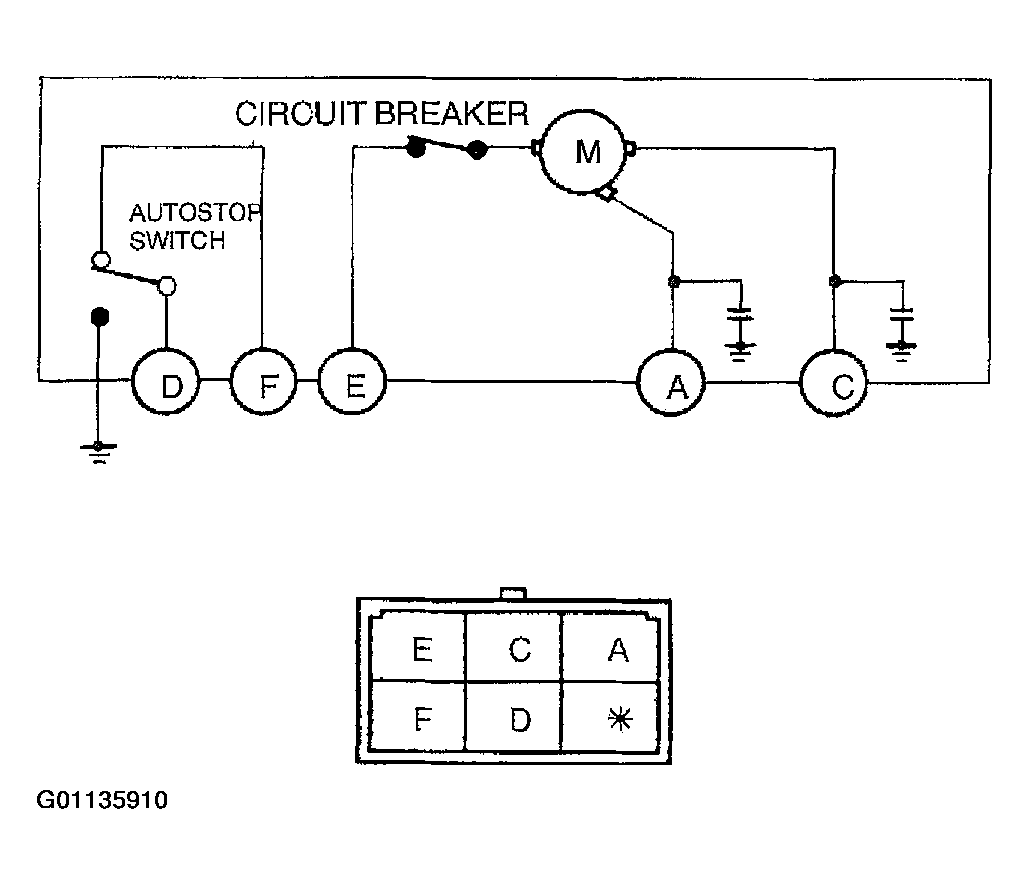

Fig 1: Windshield Wiper Motor Connector End View
G01135910Courtesy of MAZDA MOTORS CORP.

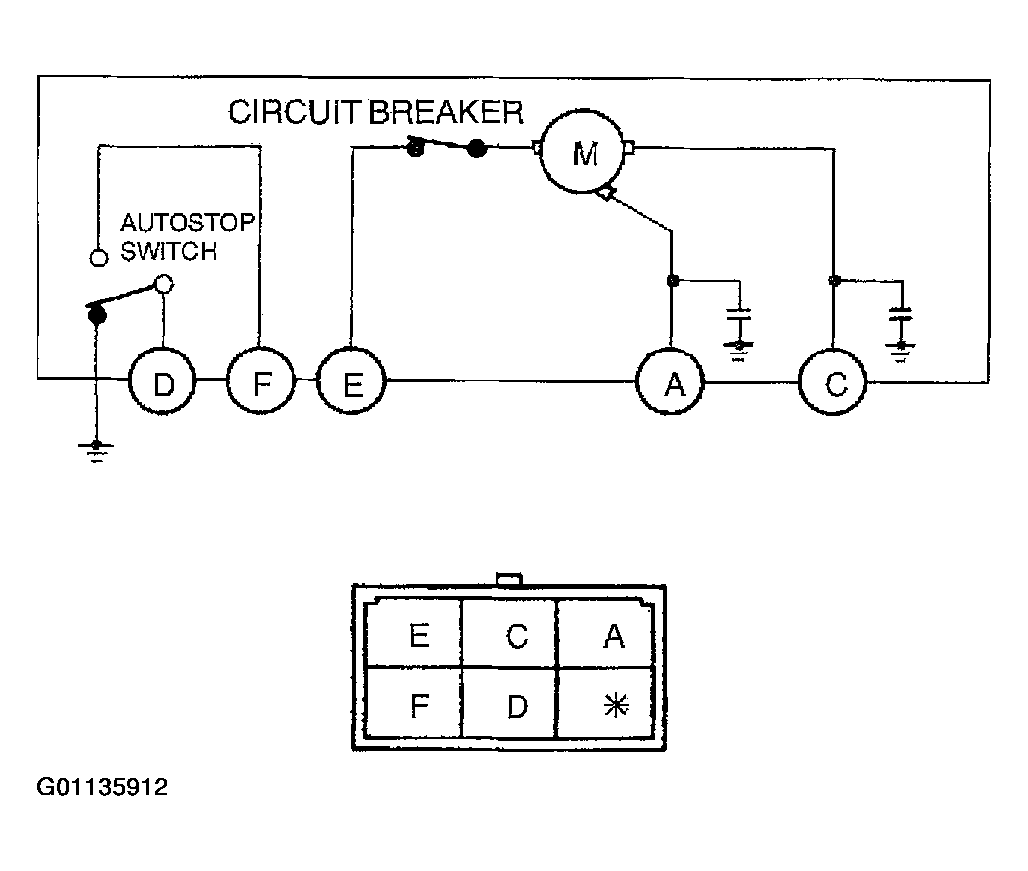

Fig 1: Windshield Wiper Motor Connector End View
G01135912Courtesy of MAZDA MOTORS CORP.
