Transmission Range Sensor Connector End View

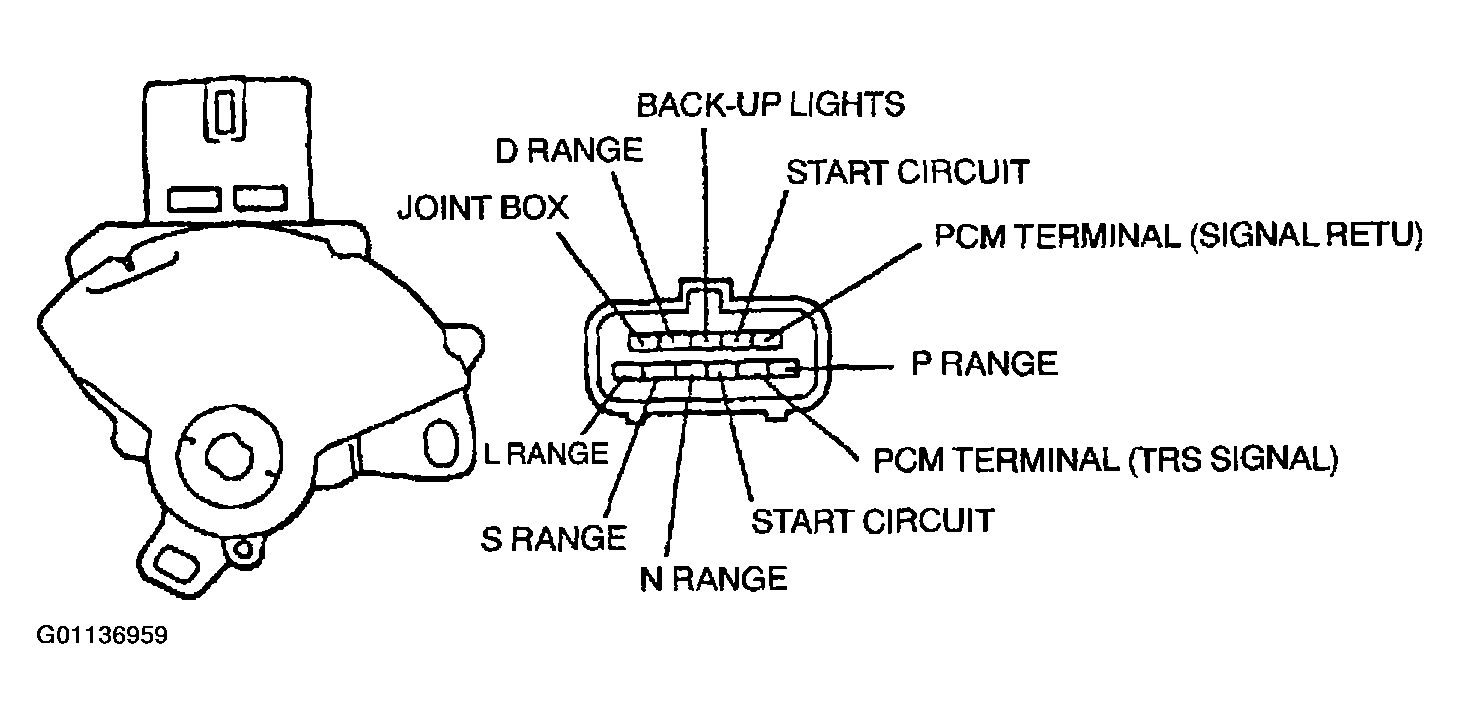

Fig 1: Transmission Range Sensor Connector End View

G01136959

Courtesy of MAZDA MOTORS CORP.
