No. 3 Abs Warning Light Go On And Off

When performing an asterisks (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.

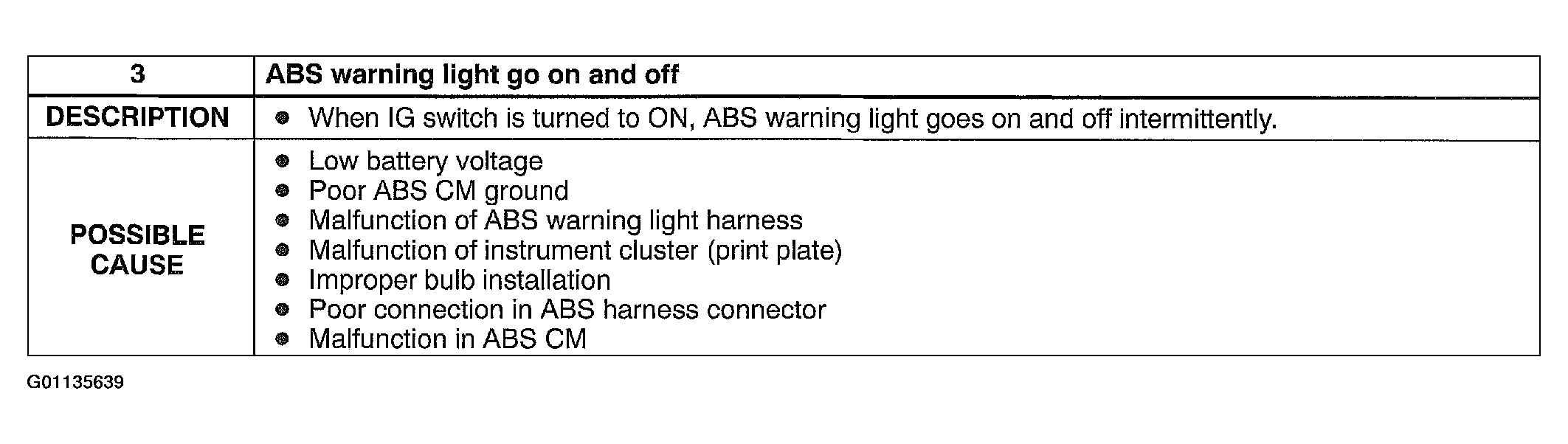

Fig 1: No. 3 ABS Warning Light Go On And Off - Description & Possible Causes
Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

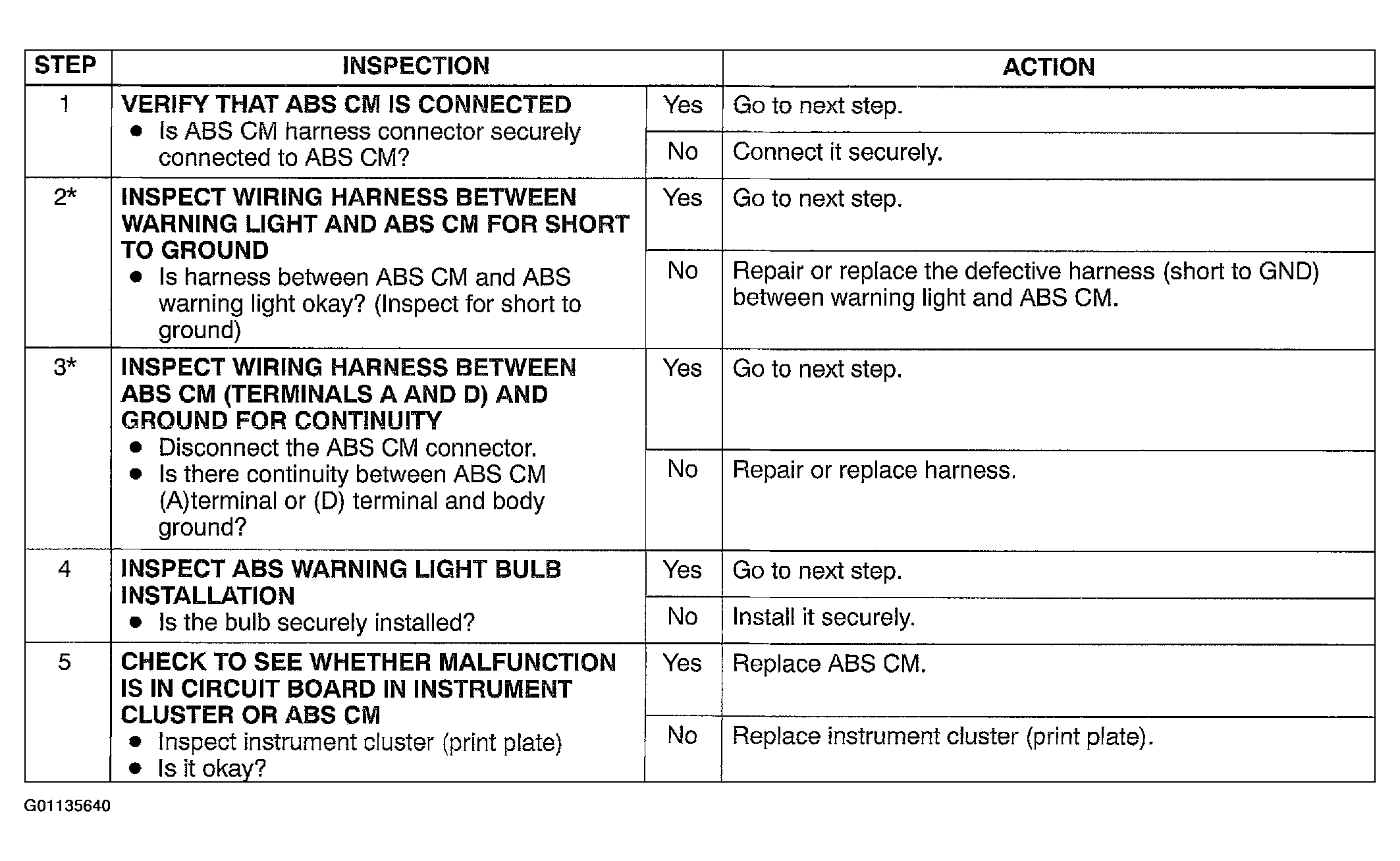

Fig 2: No. 3 ABS Warning Light Go On And Off - Inspection & Action

G01135640

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Recheck the diagnostic trouble code after repair completion.

NOTE:

The ABS warning light normally illuminates for 2-4 seconds after ignition switch is turned to ON.
If any symptoms have occurred in the past but are now okay, malfunction of related harness could be the possible cause and thus ABS CM is normal.
